Industrial Monitor- Monochrome CRT Display
12" Open Frame or Kit Monitor
LP 12 Series
(See table below for model numbers)

Select from 3 Styles

Style B 0° Tilt Tube
Style F 10° Tilt Vertical Mount
Style G10° Tilt Horizontal Mount

industrial replacement crt monitor 12 inch

This Omni Vision monitor is offered in an open frame chassis or as a kit version product for applications where a small display is required and the input signal can be composite video or TTL or analog video with TTL sync. This low power CRT module is a great solution. This 12" CRT provides great viewing angles and higher brightness levels. The main circuit board is made of industrial grade epoxy/fiber glass reinforced material with an FR4 rating.

Industrial CRT Replacement Monitor FEATURES

• All circuitry is on a single, double sided, plated through PCB.
• All controls are easily accessible from the top of monitor.
• The video display is stabilized through the use of a voltage controlled, temperature compensated feedback to synchronized free run oscillator.
• Electronic horizontal video centering.
• Geometric distortion - within 2 % EIS Standard Dot/Ball Chart or variation between adjacent characters not more than 10 % in alpha numeric display applications
• High Voltage - Over 10 kV at 50 microamperes of beam current with no more than 0.5 kV variation from zero beam to 100 microamperes beam current

Industrial CRT Replacement Monitor SPECIFICATIONS

CRT size:

12"

Phosphor: White P4 standard. Green and Amber optional.
Display size:

55 sq. in. max.

Scanning: Interlaced & Non-interlaced
Horizontal frequencies: 15 to 48.3 kHz ± 500 Hz
Vertical frequencies: 50 or 60 Hz
Video Response:

From 20 to 65 MHz

Maximum Resolution: 1024 X 768 @ 60 Hz
Display Color: Unlimited Gray Scale
Agency Approvals: UL, cUL, TÜV
Agency Compliance: FDA, CE, FCC
Dimensions (HxWxD): See mechanical drawings:
Style B: 94-012; Style F: 94-012; Style G: 94-014
Weight (approx.): Depends on product version: chassis or kit .

Industrial CRT Replacement Monitor
ADDITIONAL SPECIFICATIONS

TTL Signals
Signal
Positive polarity + 2.5 v to 5.0 v
Video
Input Impedance Bandwidth 470 ohms Within 3 dB from 10 Hz to 26 kHz
Vertical
Input Impedance Typical Signal Greater than 1k Ohms 180 micro seconds
Horizontal
Input Impedance Typical Signal Greater than 6k Ohms 2.5 to 8 micro seconds
Composite Video
Signal
Positive video - negative sync 0.7 v to 1.8 v peak to peak composite
Input Impedance Bandwidth 75 Ohms Within 3 dB from 10 Hz to 26 kHz
Industrial CRT Replacement Monitor
GENERAL INFORMATION
• On board service controls Brightness, Contrast, Focus Horizontal
     [Size, Centering, Hold], Vertical [Size, Centering, and Linearity]
• Optional remote brightness interface available
• Input signal type standard - Analog Video - 0 to 0.7 volts
            Horizontal & Vertical Sync Signals - TTL level 0 to 5 volts

• Signal Connectors - Standard card edge connector
• Input Power - Standard +12 vdc @ 1.5 A (typical)
• Input Power Connector - Standard card edge connection
• Optional - Remote AC Power Input - 100-240 VAC auto ranging (47-63 Hz)
• Temperature - Operating from 0 to +55 ° C
                      -Storage from -20 to +65 ° C

Industrial CRT Replacement Monitor ORDERING INFORMATION
When ordering, compile model number from the options listed below. Example: LP12-18-G-2A-P4 specifies Model LP12 with 18 kHz frequency, NTSC, factory assigned number and white phosphor tube.
LP12-XX-Y-ZZ-?
Frequency
Horiz
ontal (kHz)
Signal
Chassis
Kit
Factory Assigned
Phosphor Color
15
18
21
24
31
35
48
Composite Video
G NTSC or PAL
G NTSC or PAL
1-9 or
A-Z
or
combination
P4 White
TTL
E Std TTL or Analog Video w/TTL sync.
E Std TTL or Analog Video w/TTL sync.
P31 Green
LA Amber
Industrial CRT Replacement Monitor DIMENSIONS

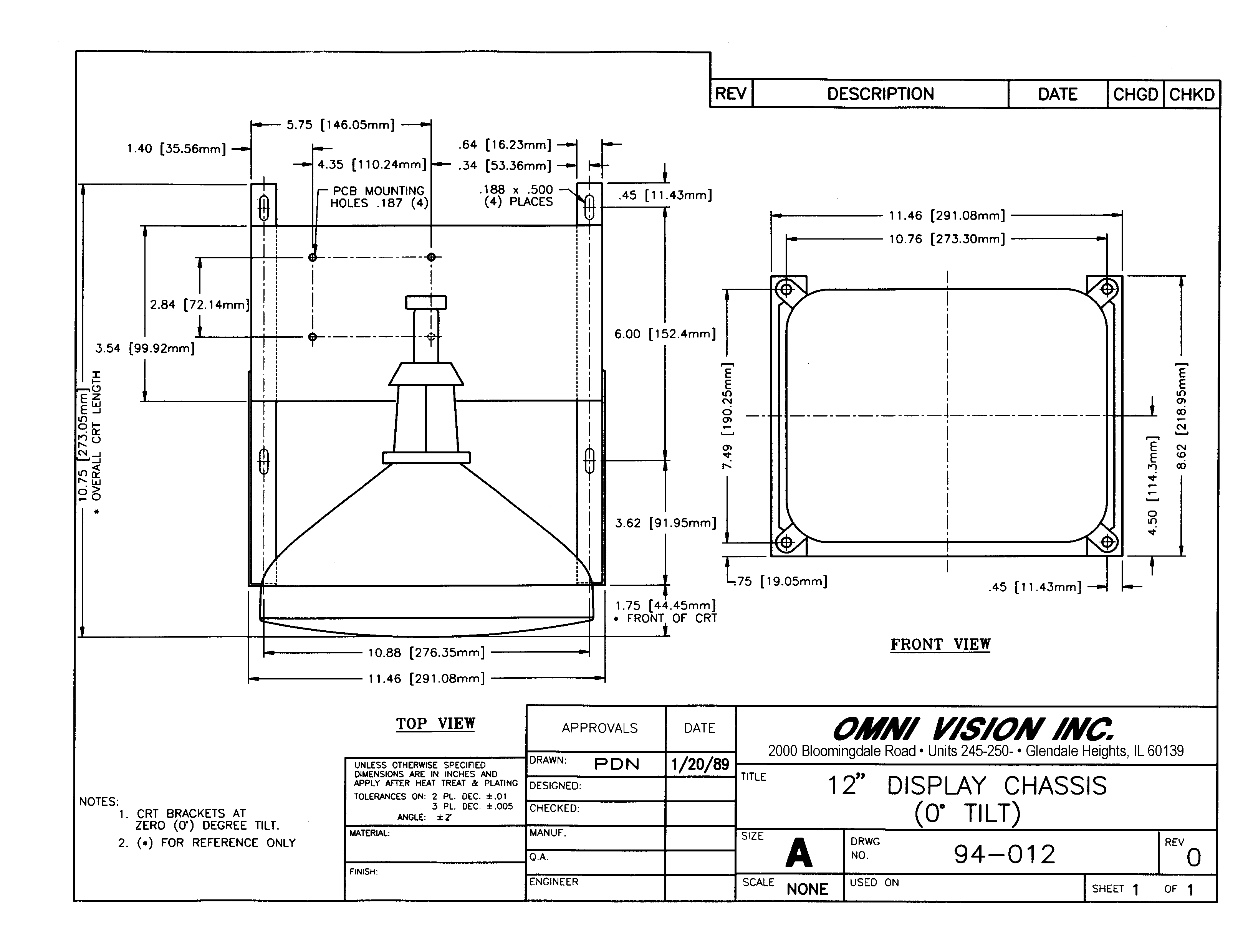

Drawing 94-012 for Industrial CRT Replacement Monitor Chassis Model LP12, Style B
Industrial CRT Replacement Monitor Chassis Model LP12 style B
Drawing 94-013 for Industrial CRT Replacement Monitor Chassis Model LP12, Style F

Industrial CRT Replacement Monitor Chassis Model LP12
Drawing 94-014 for Industrial CRT Replacement Monitor Chassis Model LP12, Style G
Industrial CRT Replacement Monitor Chassis Model LP12 style G
PRINTING
The following PDF files may be used for printing A-size drawings 94-012, 94-013 and 94-014 or the Data Sheet
pdf image Industrial CRT Replacement Monitor Chassis Drawing 94-012
Industrial CRT Replacement Monitor Chassis Drawing 94-013
Industrial CRT Replacement Monitor Chassis Drawing 94-014

Industrial CRT Replacement Monitor Data Sheet for LP12 Series
