OmniVisionUSA.com - Industrial Monitors - Panel Mount - 12.1 Inch Monitor

Industrial LCD Display Monitors

Flat Panel Mount Display Monitor, 12.1"

NEMA 4x Rated Applications Available
Made in the USA
Version Type Model # Power Input Type

VGA/SVGA (analog)

DC version BZ12B1G0-Bx… Series Input: +12 vdc
AC version BZ12B4G0-Bx… Series Input: 110/220 VAC

Dual VGA/SVGA and NTSC/PAL

DC version DM12B1G0-Bx… Series Input: +12 vdc
AC version DM12B4G0-Bx… Series Input: 110/220 VAC

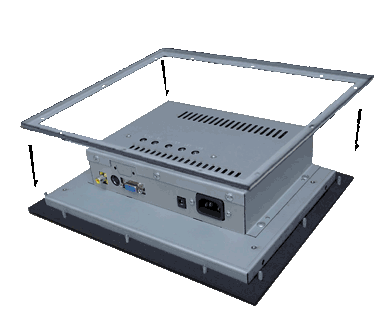

industrial lcd monitor, 12.1inch bezel front viewindustrial LCD monitor bezel 12.1 inch rear view

Flat Panel Mount Display Monitor Model with VGA Shown

Flat Panel Mount Display Monitor FEATURES

  • Easy to mount open frame, metal chassis (top & bottom flanges or side flanges)
  • NEMA 4X rated applications optional: Metal bezel ready for panel mounting
  • User controls: Brightness, contrast, auto set up, etc
  • User service controls accessed in rear standard
  • Different models for different input signals: VGA/SVGA.
  • Input power flexibility: Standard +12 vdc at 2.0 Amps, other DC voltages or auto ranging AC power input from 100-240 VAC @ 47 to 63 Hz
  • RoHS compliant
  • Safety agency compliance: UL, cUL, and others
  • Standard model has anti-reflective polycarbonate protective
  • Options: Resistive touch screens with RS232 or USB interface for Windows and other operating systems

Flat Panel Mount Display Monitor
ELECTRICAL AND DISPLAY SPECIFICATIONS
Active Matrix

12.1" TFT color LCD (307.3 mm diagonal)
Viewing Size (mm) 9.68" x 7.26" (246.0 x 184.5 mm)
Viewing Angle Horizontal - right & left 70 degrees
Vertical - upper 50 degrees & lower 60 degrees
Max Resolution 800 x 600 pixels
Max Colors 16.2M/262K colors (RGB 6-bit driver)
Dot Pitch 0.3075(H) x 0.3075(W) mm
Response Time

Rise Time: 10 millisec (typical)
Fall Time: 25 millisec (typical)
Brightness Full white: 400 nits
Contrast Ratio 600:1
Horizontal Frequency 31.5 to 54 kHz
Vertical Frequency 56 to 85 Hz
Signal Inputs

—VGA/SVGA Models

31.4 kHz to 48 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector

—NTSC/PAL Models

Standard RCA connector or optional BNC adapter
Temperature Operating from -30 to +85 degrees C
Storage from -30 to +85 degrees C
DC Power Input Standard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts
AC Power Input Standard 100-240 VAC auto ranging @ 47 to 63 Hz
through standard IEC-320 connector or 3-wire AC power cord
Flat Panel Mount Display Monitor
MECHANICAL DETAILS AND DIMENSIONS

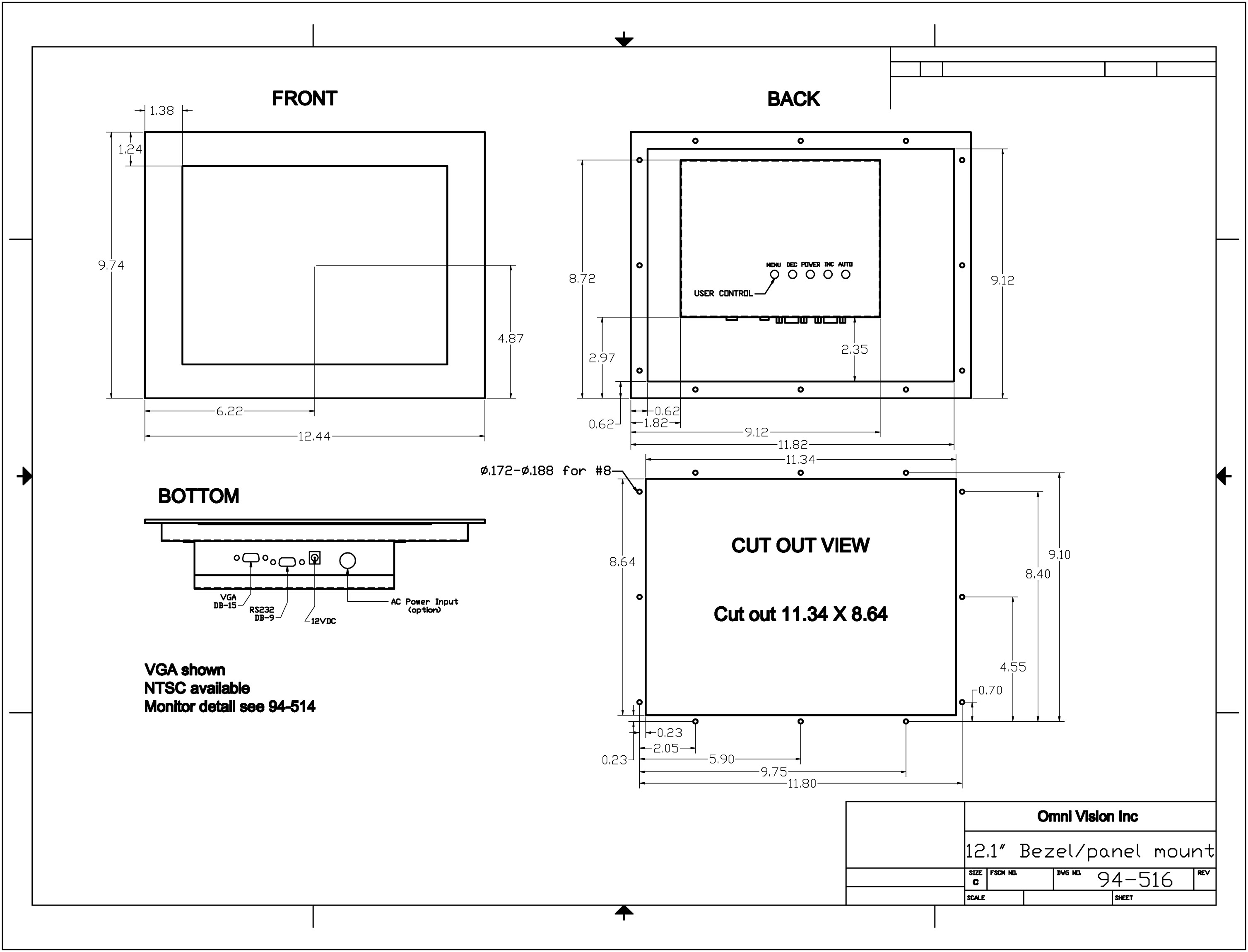

Drawing 94-516 for Flat Panel Mount Display Monitor
models BZ12B1G0-02
Industrial TFT Color LCD Display Monitors 12.1" Bezel/Panel Mount Chassis Version Models Drawing
PRINTING
The following PDF files may be used for printing A-size drawing
pdf image
Bezel and Panel mount Models
 Specifications Drawings
VGA/SVGA
DC version Flat Panel Mount Display Monitor
BZ12B1G0-B1		 Flat Panel Mount Display Monitor
Drawing 94-516
AC version Flat Panel Mount Display Monitor
BZ12B4G0-B1		 Flat Panel Mount Display Monitor
Drawing 94-516

Dual VGA/SVGA
& NTSC/PAL
DC version Flat Panel Mount Display Monitor
DM12B1G0-B1		 Flat Panel Mount Display Monitor
Drawing 94-516
AC version Flat Panel Mount Display Monitor
DM12B4G0-B1		 Flat Panel Mount Display Monitor
Drawing 94-516
