Open Frame Industrial Monitor,19.1"

Made in the USA

Version Type Model # Power Input Type

VGA/SVGA/XGA/SXGA

DC version FP19D1G0-Bx… Series Input: +12 vdc
AC version FP19D4G0-Bx… Series Input: 110/220 VAC

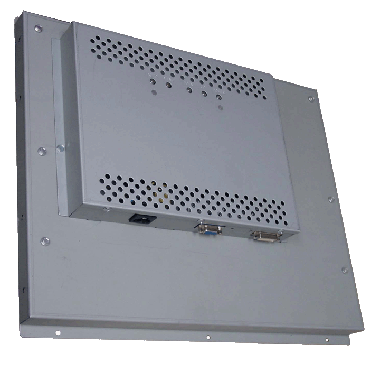

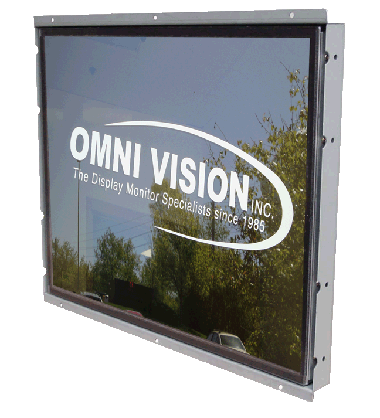

Open Frame Industrial LCD Display Monitors 19.1" Open Frame Models front viewOpen Frame Industrial LCD Display Monitors 19.1" Open Frame Models rear view

Industrial Flat Panel Display Monitor Model Shown with VGA Input

Industrial Flat Panel Monitor FEATURES

  • Easy to mount open frame, metal chassis (top & bottom flanges or side flanges)
  • Optional metal bezel ready for panel mounting with option for NEMA rated applications
  • Optional Rack Mount: Standard 19" Panel
  • User controls: Brightness, contrast, auto set up, etc
  • User service controls accessed in rear standard
  • Different models for different input signals: VGA/SVGA/XGA/SXGA
  • Signal Input type: Analog VGA or DVI
  • Input power flexibility: Standard +12 vdc at 2.0 Amps, other DC voltages or auto ranging AC power input from 100-240 VAC @ 47 to 63 Hz
  • RoHS compliant
  • Standard model has anti-reflective polycarbonate protective
  • Options: Resistive touch screens with RS232 or USB interface for Windows and other operating systems

Industrial Flat Panel Monitor
ELECTRICAL AND DISPLAY SPECIFICATIONS
Active Matrix

19" TFT color LCD (483 mm diagonal)
Usable Viewing Area (Size) 14.8" X 11.8" (376.3 x 301.1 mm)
Viewing Angle Horizontal - right & left 70 degrees
Vertical - upper & lower 70 degrees
Max Resolution 1280 X 1024 pixels
Max Colors 16.2M colors
Dot Pitch 0.294(H) x 0.0.294(W) mm
Response Time

Rise Time: 15 millisec (typical)

Fall Time: 10 millisec (typical)
Brightness Full white: 250 nits
Contrast Ratio 500:1
Horizontal Frequency 31.5 kHz to 80 kHz
Vertical Frequency 56 to 75 Hz
Signal Inputs

VGA/SVGA/XGA/SXGA Model

 31.4 kHz to 80 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector

DVI Model

 31.4 kHz to 80 kHz @ 60 Hz through standard DVI-D connector
Temperature Operating from 0 to +40 degrees C
Storage from -20 to +60 degrees C
DC Power Input Standard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts
AC Power Input Standard 100-240 VAC auto ranging @ 47 to 63 Hz
through standard IEC-320 connector or 3-wire AC power cord
Industrial Flat Panel Monitor
MECHANICAL DETAILS AND DIMENSIONS

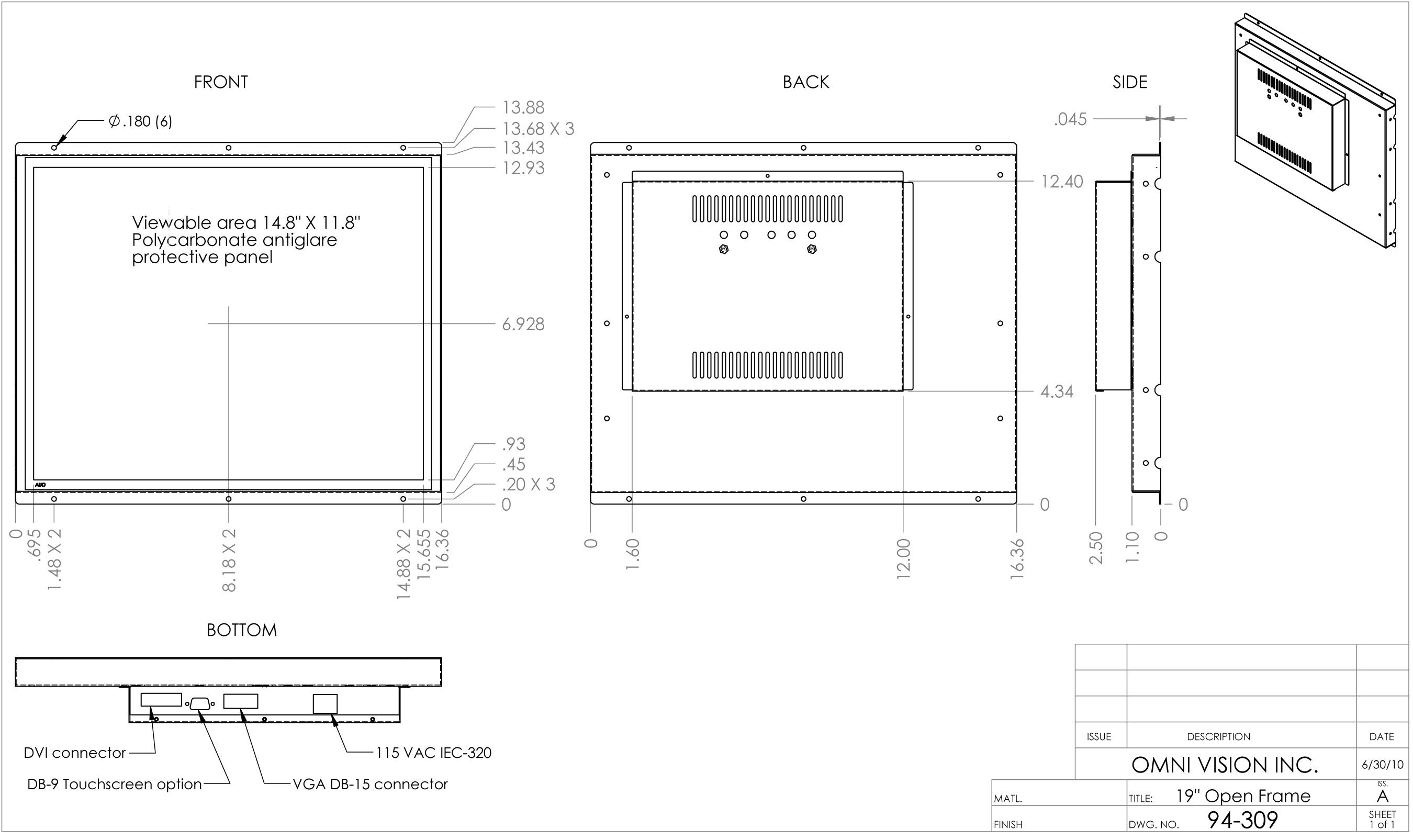

Drawing 94-309 for Open Frame Industrial Flat Panel Monitor
Chassi Version Model FP19DxG0-0x
Open Frame Industrial LCD Display Monitors 19.1" Open Frame Models Drawing
PRINTING
The following PDF files may be used for printing A-size drawing
pdf image
Open frame
Top/Bottom/side flanges
 Specifications Drawings
VGA/SVGA/XGA/SXGA
& DVI Model
DC version Industrial Flat Panel Monitor
FP19D1G0-01		 Industrial Flat Panel Monitor
Drawing 94-309
AC version Industrial Flat Panel Monitor
FP19D4G0-01		 Industrial Flat Panel Monitor
Drawing 94-309
