Industrial Monitor- Monochrome CRT Display
7" Open Frame or Kit Monitor
LP 07 Series
(See table below for model numbers)

Industrial Monitor- Monochrome CRT Display
7 inch Open Frame or Kit Monitor

This Omni Vision monitor is offered in an open frame chassis or as a kit version product for applications where a small display is required and the input signal can be composite video or TTL or analog video with TTL sync. This low power CRT module is a great solution. The flat face 7" CRT provides great viewing angles and higher brightness levels. The main circuit board is made of industrial grade epoxy/fiber glass reinforced material with an FR4 rating.

FEATURES
• All circuitry is on a single, double sided, plated through PCB.
• All controls are easily accessible from the top of monitor.
• The video display is stabilized through the use of a voltage controlled, temperature compensated feedback to synchronized free run oscillator.
• Electronic horizontal video centering.
• Geometric distortion - within 2 % EIS Standard Dot/Ball Chart or variation between adjacent characters not more than 10 % in alpha numeric display applications
• High Voltage - Over 10 kV at 50 microamperes of beam current with no more than 0.5 kV variation from zero beam to 100 microamperes beam current
SPECIFICATIONS
CRT size:

7", radius of curvature 2000 mm

Phosphor: White P4 standard. Green and Amber optional.
Display size:

127 x 95 mm (5.0" x 3.75")

Scanning: Interlaced & Non-interlaced
Horizontal frequencies: 15 to 48.3 kHz ± 500 Hz
Vertical frequencies: 50 or 60 Hz
Video Response:

From 20 to 65 MHz

Maximum Resolution: 1024 X 768 @ 60 Hz
Display Color: Unlimited Gray Scale
Agency Approvals: UL, cUL, TÜV
Agency Compliance: FDA, CE, FCC
Dimensions (HxWxD): See mechanical drawings:
94-008 for Style "M"; 94-009 for Style "B"
Weight (approx.): Depends on product version: chassis or kit .
ADDITIONAL SPECIFICATIONS
TTL Signals
Signal Positive polarity + 2.5 v to 5.0 v
Video Input Impedance Bandwidth 470 ohms Within 3 dB from 10 Hz to 26 kHz
Vertical Input Impedance Typical Signal Greater than 1k Ohms 180 micro seconds
Horizontal Input Impedance Typical Signal Greater than 6k Ohms 2.5 to 8 micro seconds
Composite Video
Signal Positive video - negative sync 0.7 v to 1.8 v peak to peak composite
Input Impedance Bandwidth 75 Ohms Within 3 dB from 10 Hz to 26 kHz

GENERAL INFORMATION
• On board service controls Brightness, Contrast, Focus Horizontal [Size, Centering, Hold],
          Vertical [Size, Centering, and Linearity]
• Optional remote brightness interface available
• Input signal type standard - Analog Video - 0 to 0.7 volts
            Horizontal & Vertical Sync Signals - TTL level 0 to 5 volts

• Signal Connectors - Standard card edge connector
• Input Power - Standard +12 vdc @ 1.5 A (typical)
• Input Power Connector - Standard card edge connection
• Optional - Remote AC Power Input - 100-240 VAC auto ranging (47-63 Hz)
• Temperature - Operating from 0 to +55 ° C
                      -Storage from -20 to +65 ° C

ORDERING INFORMATION When ordering, compile model number from the options listed below. Example: LP07-18-G-2A-P4 specifies Model LP07 with 18 kHz frequency, NTSC, factory assigned number and white phosphor tube.
LP07-XX-Y-ZZ-?
Frequency
Horiz
ontal (kHz)
Chassis
Kit
Factory Assigned
Phosphor Color
15
18
21
24
31
35
48
G NTSC or PAL
G NTSC or PAL
1-9 or
A-Z
or
combination
P4 White
E Std TTL or Analog Video w/TTL sync.
E Std TTL or Analog Video w/TTL sync.
P31 Green
LA Amber
DIMENSIONS
Drawing 94-008 for Chassis Model LP07 Style M
Industrial Monitor- Monochrome CRT Display 7 inch Open Frame or Kit Monitor drawing

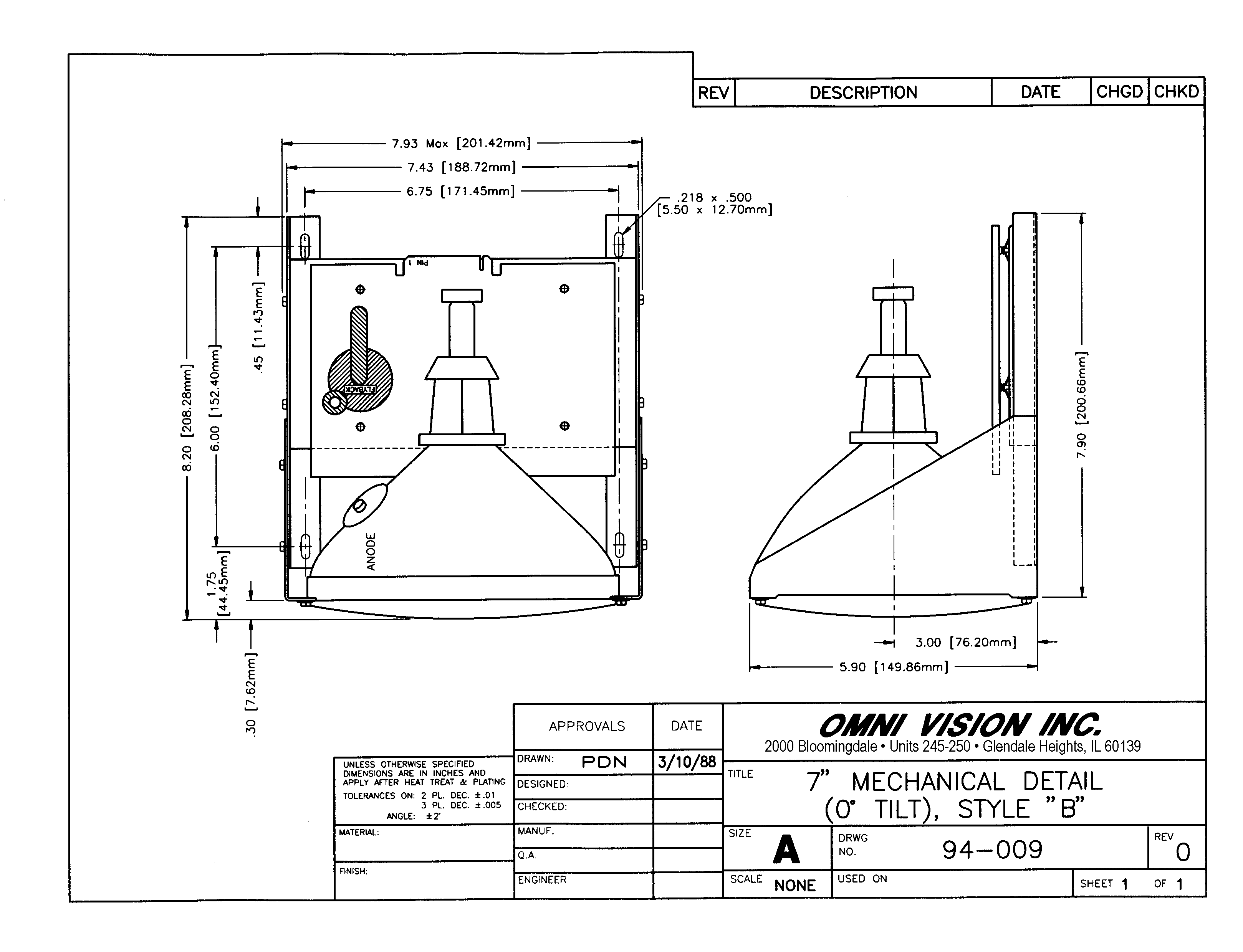

Drawing 94-009 for Chassis Model LP07 Style B

Industrial Monitor- Monochrome CRT Display 7 inch Open Frame or Kit Monitor drawing 2



PRINTING
The following PDF files may be used for printing A-size drawings 94-008 and 94-009 or the Data Sheet for both models

monitors industrial replacement crt pdf image

Chassis Drawing 94-008 for Style M
Chassis Drawing 94-009 for Style B

Data Sheet for LP07 Series
