Industrial Monitors- Flat Panel Display
8.4"
Replacement Industrial LCD Display
for 9" color CRT Replacement
Model FP08A4B0-AN Series
Made In The USA |

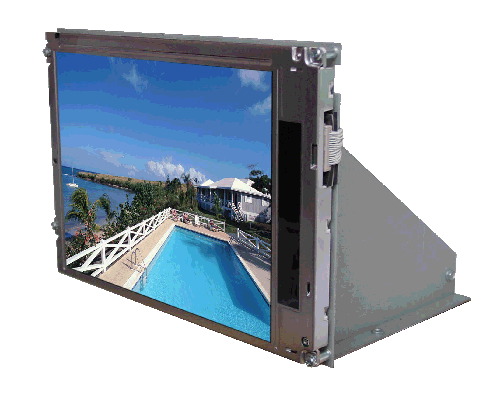

TFT Replacement Industrial LCD Display with metal chassis to replace a CRT monitor
Model # FP08A1B0-BB
|
|
This Omni Vision state
of the art, display module has a TFT active matrix replacement LCD panel and will
display standard VGA computer generated information. Just apply AC power
and connect the signal and the monitors will display the data or graphics
in full color. It has features that allow the user to reduce the size
and re-position the displayed data both horizontally and vertically.
|
Replacement Industrial LCD Display
DISPLAY
SPECIFICATIONS |
| Active
Matrix |
8.4" TFT color
LCD (210 mm diagonal) |
| Viewing
Size (mm) |
6.7"
X 5.1" (171 x 130 mm) |
| Viewing
Angle |
Horizontal
± 60 degrees
Vertical +45/-55 degrees |
| Max
Resolution |
640
x 480 pixels |
| Pixel
Pitch |
0.267
(H) x 0.267 (W) mm |
| Display
Color |
262,144 colors |
| Brightness |
Full
white > 300 cd/m sq'd (NITS) ) |
| Contrast
Ratio |
Typically
250:1 |
|
Replacement Industrial LCD Display
GENERAL
SPECIFICATIONS
• The LCD panel
is assembled to a sturdy metal chassis ready for installation
• Service
controls available - Auto set up, Phase, Brightness, Contrast, Size, and
Horizontal &
Vertical positioning
• Temperature - Operating from 0 to +55 ° C
-
Storage from -25 to +70 ° C
• Input connector - standard 15-pin HD "D" sub VGA connector for
computer data/graphic interface
• Input signal - Standard VGA 640x480
resolution format (analog RGB video, TTL sync)
• AC power adapter - AC 100-240V/60 Hz, 12 v @ 3.3 A
• Power consumption - Less than 15 watts |
PRINTING The
following PDF file may be used for printing the Data Sheet |
 |
Replacement Industrial LCD Display for CRT Replacement Chassis |
|
