Industrial LCD Monitor- CRT Replacement

OmniVision # FP08B4GO-11 Industrial Replacement Monitor LCD for Box Chassis

OmniVision # FP08B4GO-21 Industrial Replacement Monitor LCD Low Profile Chassis

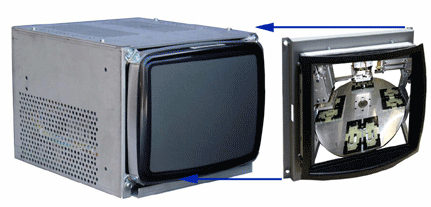

This Omni Vision 8.4" industrial LCD module drops into sturdy industrial 10" color CRT monitor open frame, metal chassis applications. It is designed to replace the 10" color CRT and it's associated electronics while maintaining high-resolution image requirements of wide-angle viewing and bright light output. This module operates as a standard plug-n-play monitor in an industrial equipment environment.

Industrial Replacement Monitor LCD Module
for 10" Color CRT Monitor

If your system requires a monitor with the following parameters:
• AC power between 100 and 264 VAC at 50 or 60 Hertz
• AC power interface is standard IEC 320 connector
• Signal inputs of -
    • VGA - horizontal frequency 31.468 kHz, vertical frequency 59.941 Hz
                horizontal frequency 31.468 kHz, vertical frequency 70.087 Hz
    • VESA VGA - horizontal frequency 37.500 kHz, vertical frequency 75 Hz
    • SVGA - horizontal frequency 35.156 kHz, vertical frequency 56.25 Hz
    • VESA SVGA - horizontal frequency 37.879 kHz, vertical frequency 60.317 Hz
    • NEC VGA - horizontal frequency 24.823 kHz, vertical frequency 56.416 Hz
    • CGA - horizontal frequency 15.70 kHz, vertical frequency 59.924 Hz
    • EGA - horizontal frequency 21.851 kHz, vertical frequency 59.701 Hz
• Signal interface is standard analog 15-pin HD "D-sub" connector
• Existing monitor has standard 14" color CRT installed
• CRT needs to fit bezel to match contours
• Need something to match CRT mounting holes

If all these requirements are met, than it's easy to replace the CRT and electronics with this    module
• Power down
• Remove signal and power cables
• Remove 14" color CRT
• Remove drive (main board) electronics
• Mount the replacement module into existing CRT mounting holes
• Connect power and signal
• Turn on the power
