OmniVisionUSA.com - Industrial Monitors - Color LCD CRT Replacement - 12.1 Inch LCD Display

Industrial Monitors- Flat Panel Display

12.1" Replacement Industrial LCD Display
for 14" Monochrome CRT Replacement

Model# FP12B4G1-F6 replacement for LP1431PVN-xx model for
 replacing VGA 14" monochrome CRT

Made In The USA
Version Type Model # Power Input Type

VGA & NTSC

DC version N/A N/A
AC version FP12B4G1-F6 Input: 110/220 VAC

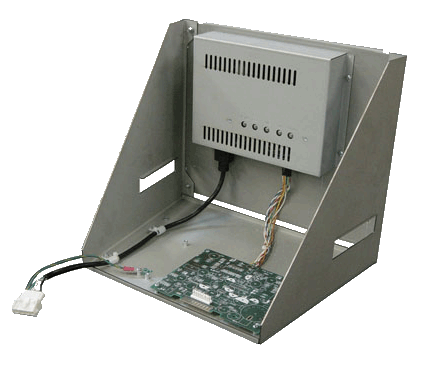

Industrial LCD Replacement monitor 12.1 Replacement lcd for 14 inch crtIndustrial LCD Replacement monitor 12.1 Replacement lcd for 14 inch crt

TFT Replacement Industrial LCD Display with metal chassis to replace a CRT monitor
Model # LP1431PVN-xx

Replacement Industrial LCD Display
GENERAL SPECIFICATIONS

• Same easy to mount open frame, metal chassis as LP1431PVN-PW monochrome CRT monitors
• NO Bezel to match CRT curvature
• User service controls of brightness, contrast, auto set up, etc
• User service controls accessed in rear standard
• Data is displayed as black & white.
• Input signals – standard VGA (analog video, TTL sync signals)
• Input signal connector – standard 10-pin header (0.1 inch centers)
• Input power flexibility - AC power input from 100-240 VAC @ 47 to 63 Hz
• Input power connector – AMP Mate-n-Lock, 4-pin
• RoHS compliant
• Safety agency compliance - UL, cUL, and others
• Standard model has anti-reflective polycarbonate protective panel attached to face of LCD panel.

Replacement Industrial LCD Display
DISPLAY SPECIFICATIONS

Active Matrix

12.1" TFT color LCD (307.3 mm diagonal)

Viewing Size (mm) 9.68" X 7.26" (246.0 x 184.5 mm)
Viewing Angle

Horizontal Right/ Left ± 70 degrees
Vertical- upper 50 Degees & lower 60 degrees

Response Time

Rise Time: 10 millisec (typical)
Fall Time: 25 millisec (typical)
Max Resolution 800 x 600 pixels
Pixel Pitch 0.3075 (H) x 0.3075 (W) mm
Display Color

16.2M/262K colors (262K - RGB 6-bit driver)
Brightness Full white 400 NITS
Contrast Ratio 600:1
Horizontal Frequency 31.5 to 54 kHz (Standard)
Vertical Frequency 56 to 85 Hz (Standard)
Temperature Operating from 0 to +50 degrees C
Storage from -20 to +60 degrees C
Signal Inputs

—VGA/SVGA Models

31.4 kHz to 48 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector
DC Power Input Standard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts
AC Power Input Standard 100-240 VAC auto ranging @ 47 to 63 Hz
through standard IEC-320 connector or 3-wire AC power cord
PRINTING
The following PDF file may be used for printing the Data Sheet

pdf image



Replacement 12.1 inch Industrial LCD Display for 14 inch CRT
