OmniVisionUSA.com - Industrial Monitors - Metal Enclosed Multi-Mount - 17.1 Inch Monitor

Monitors, Industrial LCD Display

17.1 Inch Monitor Enclosed

Made in the USA
Version Type
Model #
Power Input Type

VGA/SVGA/XGA/SXGA

DC version
EC17D1G0-xx… Series
Input: +12 vdc
DC version
EC17D2G0-xx… Series
Input: Regulated +12 vdc
AC version
EC17D4G0-xx… Series
Input: 110/220 VAC

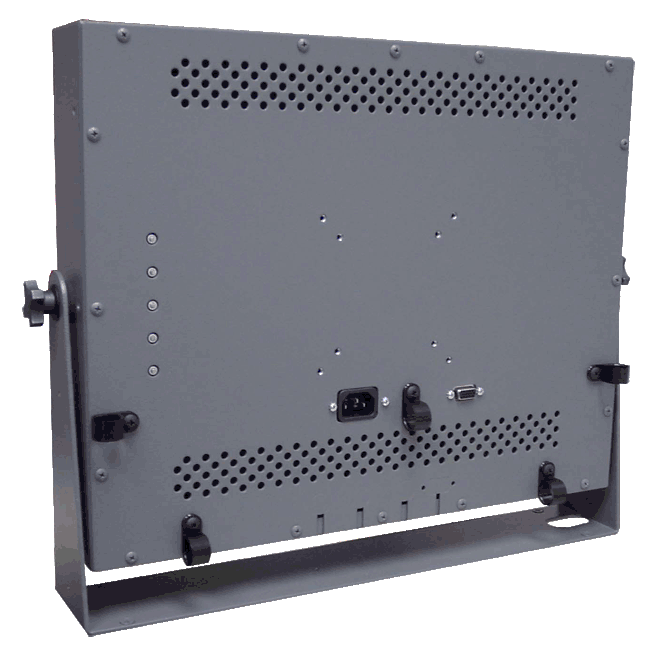

Replacement Monitors, Industrial LCD, 17.1 inch Metal Enclosed    Replacement Monitors, Industrial LCD, 17.1 inch Metal Enclosed Rear

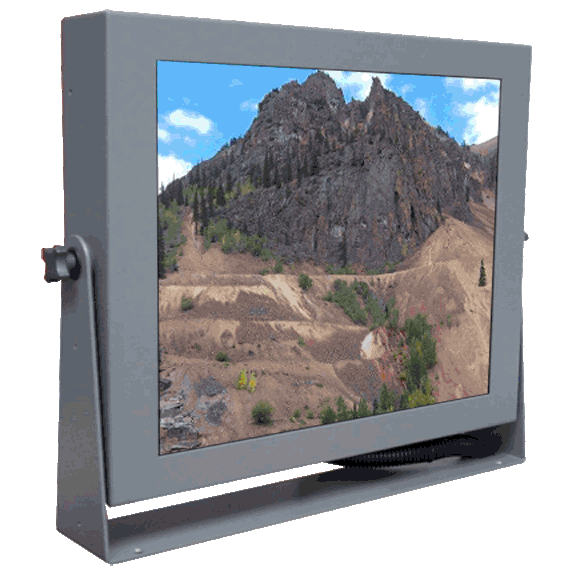

Industrial Monitor Unit Shown with Short "U" Ceiling or Vehicle Mount Brackets

Industrial Monitor Enclosed LCD FEATURES

  • Easy to mount metal encased unit with multiple mounting options:
  • Side brackets
  • Short and extended "U" wall or ceiling mount brackets
  • Top or bottom plates for extended mounting arm or pole mounting applications
  • Standard rear panel 75 & 100 mm VESA pattern
  • Optional customized NEMA rated versions available for unique applications
  • User controls: Brightness, contrast, auto set up, etc
  • User service controls accessed in rear standard
  • Different models for different input signals: VGA/SVGA/XGA/SXGA
  • Input power flexibility: Standard +12 vdc at 2.0 Amps, other DC voltages or auto ranging AC power input from 100-240 VAC @ 47 to 63 Hz
  • RoHS compliant
  • Safety agency compliance: UL, cUL and others.
  • Standard model has anti-reflective polycarbonate protective
  • Options: Resistive touch screens with RS232 or USB interface for Windows and other operating systems

Industrial Enclosed LCD Monitor
ELECTRICAL AND DISPLAY SPECIFICATIONS
Active Matrix
17" TFT color LCD (432 mm diagonal)
Usable Viewing Area (Size)
11.97" X 8.98" (304.1 x 228.1 mm)
Viewing Angle
Horizontal - right & left 70 degrees

Vertical - upper 65 degrees & lower 55 degrees
Max Resolution
1280 X 1024 pixels
Max Colors
16.2M
Dot Pitch
0.294(H) x 0.0.294(W) mm
Response Time

Rise Time: 8.5 millisec (typical)
Fall Time: 3.5 millisec (typical)
Brightness
Full white: 250 nits
Contrast Ratio
500:1
Horizontal Frequency
31.5 kHz to 80 kHz
Vertical Frequency
56 to 75 Hz
Signal Inputs:

VGA/SVGA/XGA/SXGA Model
31.4 kHz to 80 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector
Temperature
Operating from 0 to +40 degrees C
Storage from -20 to +60 degrees C
DC Power Input
Standard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts
AC Power Input
Standard 100-240 VAC auto ranging @ 47 to 63 Hz
through standard IEC-320 connector or 3-wire AC power cord

Industrial Enclosed Metal Monitor,
MECHANICAL DETAILS AND DIMENSIONS
Case Dimensions
Length: 16.20"
Height: 13.00"
Width: 2.50"

PRINTING

The following PDF files may be used for printing A-size drawing
pdf image
17.1" LCD with Metal Enclosed (Encased)
Specifications
Drawings
VGA/SVGA/XGA/SXGA
DC version (+12vdc)
Industrial Enclosed Metal Monitor
EC17D1G0-xx or -xxx
N/A
DC version (Regulated +12vdc)
Industrial Enclosed Metal Monitor
EC17D2G0-xx or -xxx
N/A
AC version
Industrial Enclosed Metal Monitor
EC17D4G0-xx or -xxx
N/A
-xx & -xxx defined below
  Enclosure Colors
Click on Picture for Mounting OptionsReplacement Monitors, Industrial LCD Metal Enclosed Mounting Options Page
Mounting Options
Black
Beige
Gray
Standard VESA mount
BV
LV
GV
Plate for Extended Arm top/bottom mount
BP
LP
GP
Side Bracket mount
BS
LS
GS
Short "U" bracket mount
BUS
LUS
GUS
Extended "U" bracket mount
BUE
LUE
GUE
