  Industrial Monitor- Monochrome CRT Display
6" Open Frame Replacement Monitor
LP 06 Series

(See table below for model numbers)
Matsushita Replacement Monitor Model - LP0615E3Y Model - LP0619EVC
Industrial Monitor-
6 inch Matsushita Replacement Monitors LP 06 series



This Omni Vision replacement 6" monitor is offered in an open frame chassis as a direct drop-in for the Matsushita 6" monitor. This monitor requires analog video or separate TTL horizontal and vertical sync. The replacement 6" CRT provides great viewing of high brightness, sharply focused displayed data. The main circuit board is made of industrial grade epoxy/fiber glass reinforced material with an FR4 rating.

FEATURES
• All circuitry is on a single, double sided, plated through PCB.
• All controls are easily accessible from the top of monitor.
• The video display is stabilized through the use of a voltage controlled, temperature compensated feedback to synchronized free run oscillator.
• Electronic horizontal video centering.
• Geometric distortion - within 2 % EIS Standard Dot/Ball Chart or variation between adjacent characters not more than 10 % in alpha numeric display applications
• High Voltage - Over 8 kV at 50 microamperes of beam current with no more than 0.5 kV variation from zero beam to 100 microamperes beam current
  SPECIFICATIONS

Omni Vision Model Number
LP0615E3Y

LP0619EVC

Agilent or HP (Hewlett-Packard) Part number
2090-0591-1
2090-0826
Phosphor:
Green P31
Green P31
Scanning:
Non-interlaced
Non-interlaced
Horizontal frequencies:
15 to 31.4 kHz ± 500 Hz
15 to 31.4 kHz ± 500 Hz
Vertical frequency:
60 Hz
60 Hz
Video Response:
To 20 MHz

To 20 MHz

Viewing Area :
20 sq. in. max.
20 sq. in. max.
Agency Approvals:
UL, cUL, TÜV
UL, cUL, TÜV
Agency Compliance:
FDA, CE, FCC
FDA, CE, FCC
Dimensions (HxWxD):
See mechanical drawing 94-007
See mechanical drawing 94-007
Weight (approx.):
3.5 lbs.
3.5 lbs.

ADDITIONAL SPECIFICATIONS
TTL Signals
Signal Positive polarity + 2.5 v to 5.0 v
Video Input Impedance Bandwidth 470 ohms Within 3 dB from 10 Hz to 26 kHz
Vertical Input Impedance Typical Signal Greater than 1k Ohms 180 micro seconds
Horizontal Input Impedance Typical Signal Greater than 6k Ohms 2.5 to 8 micro seconds
Composite Video
Signal Positive video - negative sync 0.7 v to 1.8 v peak to peak composite
Input Impedance Bandwidth 75 Ohms Within 3 dB from 10 Hz to 26 kHz

GENERAL INFORMATION
• On board service controls Brightness, Contrast, Focus Horizontal [Size, Centering, Hold],
          Vertical [Size, Centering, and Linearity]
• Optional remote brightness interface available
• Input signal type standard - Analog Video - 0 to 0.7 volts
            Horizontal & Vertical Sync Signals - TTL level 0 to 5 volts

• Signal Connectors - Standard card edge connector
• Input Power - Standard +12 vdc @ 1.5 A (typical)
• Input Power Connector - Standard card edge connection
• Temperature - Operating from 0 to +55 ° C
                      -Storage from -20 to +65 ° C




DIMENSIONS

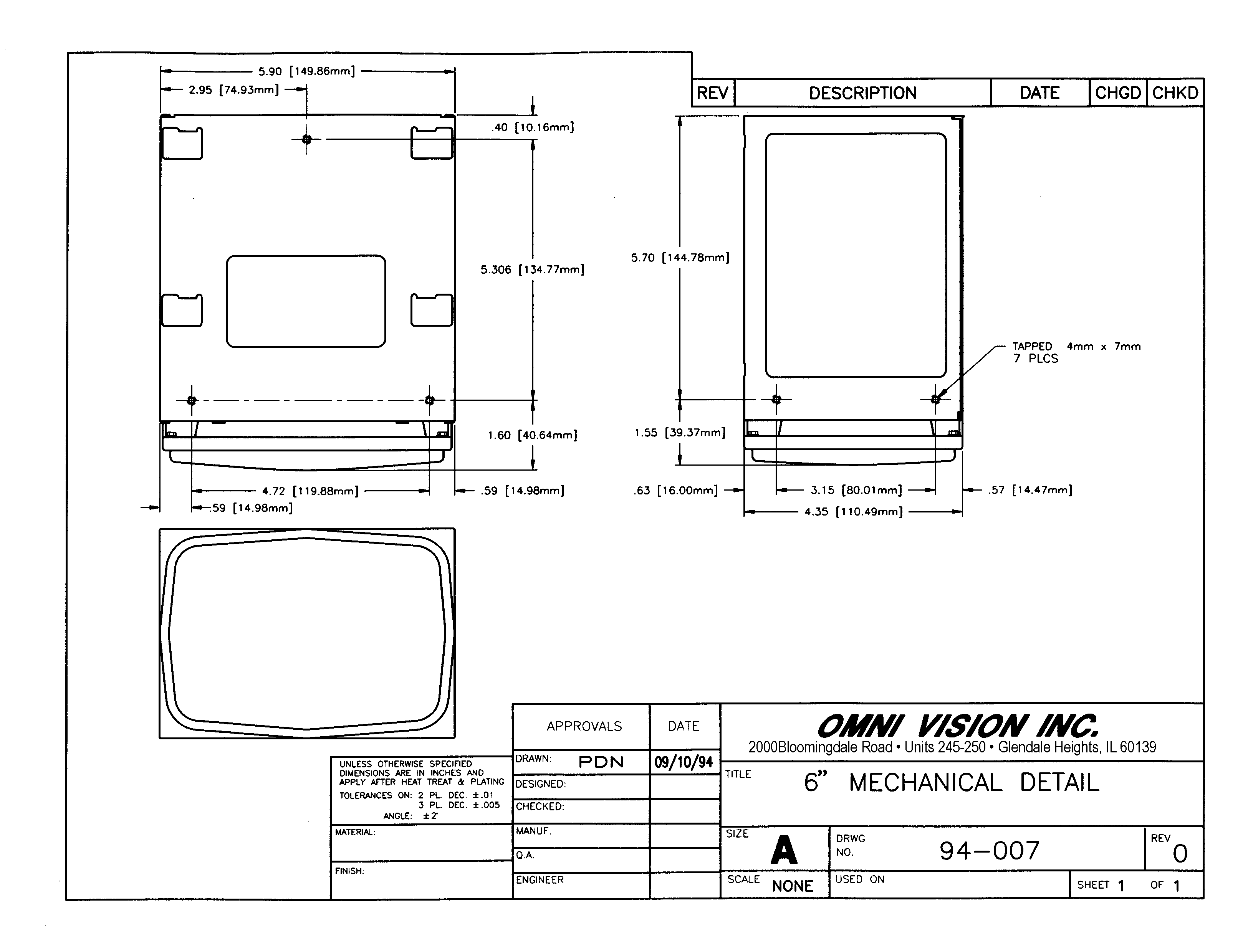

Drawing 94-007 for Chassis Model LP06 Series
6 inch industrial box chassis monitor



PRINTING
The following PDF files may be used for printing
A-size drawing 94-007 or the Data Sheet
pdf image

Chassis Drawing 94-007

Data Sheet for LP06 Replacement Series
