Monitor- Monochrome CRT Display
9" Monochrome
CRT
Replacement Open Frame Monitor For
DYNAPATH
For Delta
10 & 20 systems: Model LP0920GK3-LA
For Delta 40 systems: Model LP0931NK3-P31
| Model LP0920GK3-LA |
Dynapath #
4201264
for Delta 10, 20 systems |
Elston # DM30-09B0-728-CLA |
|
Model
LP0931NK3-P31
|
Dynapath
# 4204369
for Delta 40 systems
|
Z-Axis
# V20931042
|

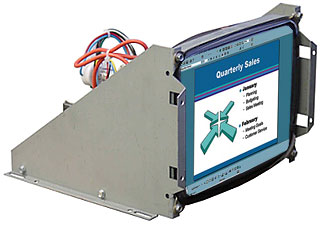

This Omni
Vision monitor is offered in an open frame chassis for direct replacement
of CRT display module in Dynapath equipment. In these chassis models the
CRT and the deflection and signal processing circuit board are mounted
in an open frame chassis assembGKly ready to be mounted in place. Omni
Vision's main circuit board is made of an industrial grade epoxy/fiber
glass reinforced material with an FR4 rating
|
|
Display
Specifications:
| Model
Number |
LP0920GK3-LA
|
LP0931NK3-P31
|
| CRT
size |
9"
|
9"
|
| Phosphor |
Amber
|
Green
|
| Scanning |
non-interlaced
|
non-interlaced
|
| Horizontal
frequency |
20-21 Khz
|
31.5
Khz
|
| Vertical
frequency |
60
Hz
|
60
Hz
|
| Video
Response |
to
22 MHz
|
to
32 MHz
|
| Typical
Resolution (pixels) |
384
X 304
|
640 X 480
|
| Signal
Type |
Composite
Video
|
TTL
Sep Sync, Analog Video
|
| Signal
Input Connector |
10-pin
card edge
|
15-pin
sub-D
|
| Agency
Approvals |
UL,
cUL, TUV
|
UL,
cUL, TUV
|
| Agency
Compliance |
FDA,
CE, FCC
|
FDA,
CE, FCC
|
| Power
Input |
+12
vdc @ 1.2 Amps
|
+12
vdc @ 1.5 Amps
|
|
|
General
Specification:
- On
board service controls Brightness, Contrast, Focus, Horizontal (Size,
Centering, and Hold), Vertical (Size, Centering, and Linearity)
- Temperature
—Operating from 0 to +55 °C
—Storage from -20 to +65 °C
|
Printing
The
following PDF file may be used for printing a data sheet
Standard product
– Dynapath
data Sheet
QUESTIONS?
CALL 630-893-1720
|
