Industrial Monitor- Monochrome CRT Display
7" Open Frame or Kit XGA Signal Input
High Resolution
1024 X 768

7 inch Open Frame or Kit XGA Signal Input

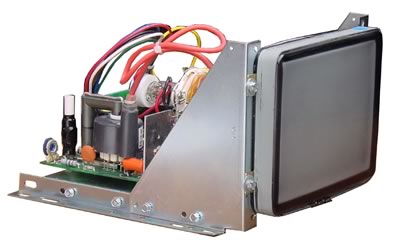

This Omni Vision monitor is offered in an open frame chassis or as a kit version product for applications where a small display is required and the input signal is a standard XGA signal. Since monochrome LCD displays do not have the high-resolution capability, this low power CRT module is a great solution. The flat face 7” CRT provides an “LCD” appearance except that it has greater viewing angles and higher brightness levels. The main circuit board is made of industrial grade epoxy/fiber glass reinforced material with an FR4 rating. Other flat face CRT models are available.

SPECIFICATIONS
CRT size:

7", radius of curvature 2000 mm

Phosphor: White P4
Display size:

127 x 95 mm (5.0" x 3.75")

Scanning: interlaced & non-interlaced
Horizontal frequencies: 15 to 48.3 kHz +/- 500 Hz
Vertical frequencies: 50 or 60 Hz
Video Response:

Tto 65 MHz

Maximum Resolution: 1024 X 768 @ 60 Hz
Display Color: Unlimited Gray Scale
Agency Approvals: UL, cUL, TÜV
Agency Compliance: FDA, CE, FCC
Dimensions (HxWxD): See mechanical drawing
Weight (approx.): depends on product version..

GENERAL INFORMATION

  • On board service controls Brightness, Contrast, Focus Horizontal Size, Centering, Hold Vertical Size, Centering, and Linearity
  • Optional remote brightness interface available
  • Input signal type standard XGA -
    Analog Video - 0 to 0.7 volts
    Horizontal & Vertical Sync Signals - TTL level 0 to 5 volts
  • Signal Connectors - Standard card edge connector
    Optional - High density DB-15 connector on 8" cable
  • Input Power - Standard +12 vdc @ 1.5 A (typical)
  • Input Power Connector - Standard card edge connection
  • Optional AC Power Input - 100-240 VAC auto ranging (47-63 Hz)
  • Temperature - Operating from 0 to +55 degrees C
    Storage from -20 to +65 degrees C
