Industrial Monitor- Monochrome CRT Display
9" & 12" Open Frame Replacement Monitor
LP09 & LP12 Series

(See table below for model numbers)
Yoke Mount Version TTL Input (15 or 18 kHz) Signal Replacement Monitor
Model - LP0915LG4- Model - LP0918LG4-
Model - LP1215LG4- Model - LP0918LG4-
Industrial Monitor- Monochrome CRT Display
9 inch & 12inch Open Frame Replacement Monitor

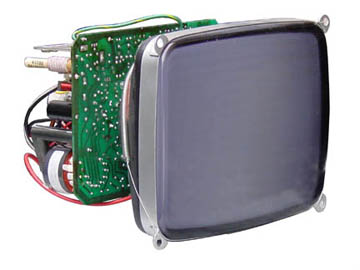

9" CRT model shown



This family of Omni Vision monitors is offer "chassis less" design where the main PCB is mount around the neck of the CRT. No need to worry about where to mount the circuit board; just mount the CRT and connect the signal and power to the unit thru a 10-pin card edge connector. The main circuit board is made of an industrial grade epoxy/fiber glass reinforced material with an FR4 rating.

FEATURES
• All circuitry is on a single, double sided, plated through PCB.
• All controls are easily accessible from the top of monitor.
• The video display is stabilized through the use of a voltage controlled, temperature compensated feedback to synchronized free run oscillator.
• Electronic horizontal video centering.
• Geometric distortion - within 2 % EIS Standard Dot/Ball Chart or variation between adjacent characters not more than 10 % in alpha numeric display applications
• High Voltage - Over 8 kV at 50 microamperes of beam current with no more than 0.5 kV variation from zero beam to 100 microamperes beam current
SPECIFICATIONS
Omni Vision Model Number
LP0915LG4-(P4. P31 or LA)
LP0918LG4-(P4. P31 or LA)

LP1215LG4-(P4. P31 or LA)
LP1218LG4-(P4. P31 or LA)

CRT Size
9"
12"
Phosphor:
White P4, Green P31or Amber LA
White P4, Green P31or Amber LA
Scanning:
Non-interlaced
Non-interlaced
Resolution ( Typ)
At 15 kHz—640 x 240
At 18 kHz—720 x 288
At 15 kHz—640 x 240
At 18 kHz—720 x 288
Horizontal frequency:
15or 18.4 kHz ± 500 Hz
15or 18.4 kHz ± 500 Hz
Vertical frequency:
50 or 60 Hz
50 or 60 Hz
Video Response:
To 20 MHz

To 20 MHz

Viewing Area :
35 sq. in. max.
55 sq. in. max.
Enhanced Video Input
To 10 MHz
To 10 MHz
Agency Approvals:
UL, cUL, TÜV
UL, cUL, TÜV
Agency Compliance:
FDA, CE, FCC
FDA, CE, FCC
Dimensions (HxWxD):
See mechanical drawing 94-007
See mechanical drawing 94-007
Weight (approx.):
3.5 lbs.
3.5 lbs.
ADDITIONAL SPECIFICATIONS
TTL Signals
Signal Positive polarity + 2.5 v to 5.0 v
Video Input Impedance Bandwidth 470 ohms Within 3 dB from 10 Hz to 26 MHz
Vertical Input Impedance Typical Signal Greater than 1k Ohms 180 micro seconds
Horizontal Input Impedance Typical Signal Greater than 6k Ohms 2.5 to 8 micro seconds

GENERAL INFORMATION



PRINTING
The following PDF files may be used for printing the Data Sheet
Industrial Monitor- Monochrome CRT Display Open Frame Replacement Monitor pdf image

Data Sheet for LP09 & LP12 Replacement Series
