Industrial Monitor- Monochrome CRT Display

5" Low Profile Open Frame, Box Chassis or Kit Monitor
LP 05 Series
(See table below for model numbers)

5 inch monochrome open frame, box chassis or kit monitor
Low profile Open Frame Chassis                                                 Box Chassis

This Omni Vision monitor is offered in an open frame chassis, box frame or as a kit version product for applications where a small display is required and the input signal can be composite video or TTL or analog video with TTL sync. This low power CRT module is a great solution. The 5" CRT provides great viewing angles and higher brightness levels. The main circuit board is made of industrial grade epoxy/fiber glass reinforced material with an FR4 rating.

FEATURES
• All circuitry is on a single, double sided, plated through PCB.
• All controls are easily accessible from the top of monitor.
• The video display is stabilized through the use of a voltage controlled, temperature compensated feedback to synchronized free run oscillator.
• Electronic horizontal video centering.
• Geometric distortion - within 2 % EIS Standard Dot/Ball Chart or variation between adjacent characters not more than 10 % in alpha numeric display applications.
• High Voltage - Over 8 kV at 50 microamperes of beam current with no more than 0.5 kV variation from zero beam to 100 microamperes beam current.
SPECIFICATIONS
CRT size:

5", radius of curvature 2000 mm

Phosphor: White P4 standard. Green and Amber optional.
Viewing Area :

15 sq. in. max.

Scanning: Interlaced & Non-interlaced
Horizontal frequencies: 15 to 48.3 kHz ± 500 Hz
Vertical frequencies: 50 or 60 Hz
Video Response:

From 20 to 65 MHz

Maximum Resolution: 1024 X 768 @ 60 Hz
Display Color: Unlimited Gray Scale
Agency Approvals: UL, cUL, TÜV
Agency Compliance: FDA, CE, FCC
Dimensions (HxWxD): See mechanical drawings:
94-005 for Low profile Style; 94-006 for Box Style
Weight (approx.): Depends on product version: chassis or kit .
ADDITIONAL SPECIFICATIONS
TTL Signals
Signal Positive polarity + 2.5 v to 5.0 v
Video Input Impedance Bandwidth 470 ohms Within 3 dB from 10 Hz to 26 kHz
Vertical Input Impedance Typical Signal Greater than 1k Ohms 180 micro seconds
Horizontal Input Impedance Typical Signal Greater than 6k Ohms 2.5 to 8 micro seconds
Composite Video
Signal Positive video - negative sync 0.7 v to 1.8 v peak to peak composite
Input Impedance Bandwidth 75 Ohms Within 3 dB from 10 Hz to 26 kHz

GENERAL INFORMATION
• On board service controls Brightness, Contrast, Focus Horizontal [Size, Centering, Hold],
          Vertical [Size, Centering, and Linearity]
• Optional remote brightness interface available
• Input signal type standard - Analog Video - 0 to 0.7 volts
            Horizontal & Vertical Sync Signals - TTL level 0 to 5 volts

• Signal Connectors - Standard card edge connector
• Input Power - Standard +12 vdc @ 1.5 A (typical)
• Input Power Connector - Standard card edge connection
• Optional - Remote AC Power Input - 100-240 VAC auto ranging (47-63 Hz)
• Temperature - Operating from 0 to +55 ° C
                      -Storage from -20 to +65 ° C

ORDERING INFORMATION
When ordering, compile model number from the options listed below. Example: LP05-18-G-2A-P4 specifies Model LP05 with 18 kHz frequency, NTSC, factory assigned number and white phosphor tube.

LP05-XX-Y-ZZ-?
Frequency
Horiz
ontal (kHz)
Signals
Chassis
Kit
Factory Assigned
Phosphor Color
15
18
21
31
35
Composite Video
G NTSC or PAL
G NTSC or PAL
1-9 or
A-Z
or
combination
P4 White
TTL
E Std TTL or Analog Video w/TTL sync.
E Std TTL or Analog Video w/TTL sync.
P31 Green
LA Amber
DIMENSIONS
Drawing 94-005 for Low Profile Chassis Model LP05
Industrial Monitor- Monochrome CRT Display 5 inch Low Profile Open Frame, Box Chassis or Kit Monitor

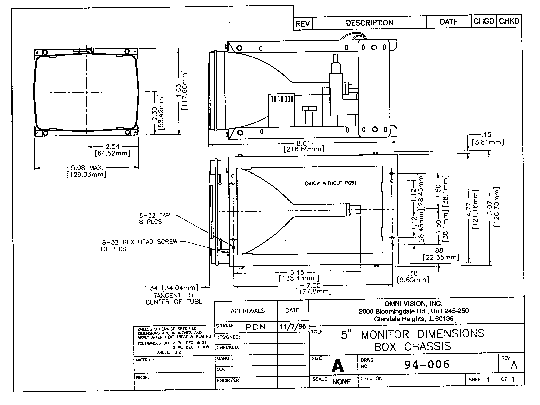

Drawing 94-006 for Box Chassis Model LP05

Industrial Monitor- Monochrome CRT Display 5 inch Low Profile Open Frame, Box Chassis or Kit Monitor
PRINTING
The following PDF files may be used for printing A-size drawings 94-005 and 94-006 or the Data Sheet for both models

pdf image

Chassis Drawing 94-005 for Low Profile Chassis Style
Chassis Drawing 94-006 for Box Chassis Style

Data Sheet for LP05 Series
