Industrial Replacement Monitors for Fanuc

12.1" Industrial Replacement LCD Monitor
replaces 14" Fanuc color CRT monitor

Matsushita model: TX 1404 AB which is commonly found in Fanuc controller
model A61L-0001-0074

Omni Vision Model:
FP12B4G0-Z1A
FP12B4G0-Z2A
FP12B4G0-ZG


Also a Industrial Replacement LCD Monitor Module for Omni Vision CRT
E14DC-ZA Rev xx

Made in the USA

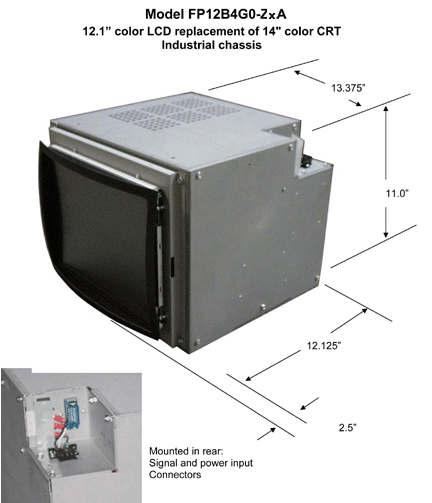

industrial lcd 12.1 inch replacement for 14 inch crt monitor drawing


OVI Model No.FP12B4G0-ZxA

OVI Model No.
 Fanuc Controller Model
Matsushita Model
FP12B4G1-Z1A
A61L-0001-0074
TX 1404 AB
FP12B4G1-Z1A
A61L-0001-0094
TX 1404 AB
FP12B4G1-Z2A
A61L-0001-0074
TX 1404 AB
FP12B4G1-ZG
A61L-0001-0096

This Omni Vision 12.1" Industrial Replacement LCD Monitor module drops into sturdy industrial 14” color CRT monitor open frame, metal chassis applications. It is designed to replace the 14" color CRT and it's associated electronics while maintaining high-resolution image requirements of wide-angle viewing and bright light output.  This monitor is a direct replacement for the Omni Vision E14DC-ZA Rev xx.


It is designed for replacement applications of a Matsushita model TX 1404 AB which is commonly found in Fanuc controller model A61L-0001-0074. This model has been specifically designed for 25.4 kHz applications, but may operate at other horizontal frequencies between 24 and 31 kHz without reducing quality or reliability of unit.

Industrial Replacement LCD Monitor
Display Specifications:



Original 14" color CRT

New 12.1" color LCD

Diagonal

335 mm

310 mm

Usable viewing area

252 x 190 mm

246 x 184.5 mm

Dot pitch

0.28 mm

0.3075 x 0.3075 mm

CRT curvature

575 mm

0 mm (flat)

Max resolution

1024 x 768 @ 60 Hz

800 x 600 @ 60 Hz

Horizontal frequency

31 to 48 kHz

15.7 to 54 kHz

Vertical frequency

50 to 90 Hz

56 to 85 Hz

Brightness (full white)

32 FL (109 nits)

300 nits (87 FL)

Contrast ratio

Not defined

500:1

Industrial Replacement LCD Monitor
General Specifications:

  • Sturdy metal chassis with mounting holes equivalent to Omni Vision E14DC-ZA
  • Plastic bezel with equivalent 14" color CRT radius of curvature
  • Rear access user service controls of brightness, contrast, auto set up, etc
  • Temperature —Operating from 0 to +55 degrees C
                         —Storage from -20 to +65 degrees C
  • Input Signal Connector - 20-pin Honda connector
  • AC Power Range - 90 VAC to 264 VAC (47 Hz to 63 Hz)
  • Agency Compliance - UL (UR, cUR) and CB
  • RoHS compliant
industrial lcd 12.1 inch replacement for 14 inch crt monitir drawing


PRINTING
The following PDF file may be used for printing the Data Sheet
pdf image



12.1" Industrial Replacement LCD Monitor of 14" color CRT Industrial chassis


Back to Top
