10.4" Open Frame Industrial LCD Model for 12" CRT Replacement
Model FP10B4G0-E7 (This Model does not include a bezel)

Made in the USA

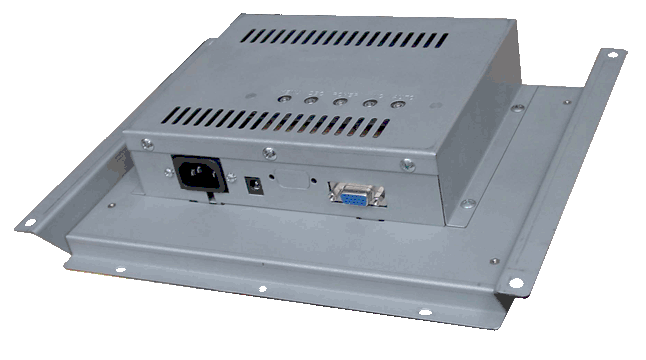

Industrial LCD Display Monitors 10.4" Open Frame Front ViewIndustrial LCD Display Monitors 10.4" Open Frame Rear View

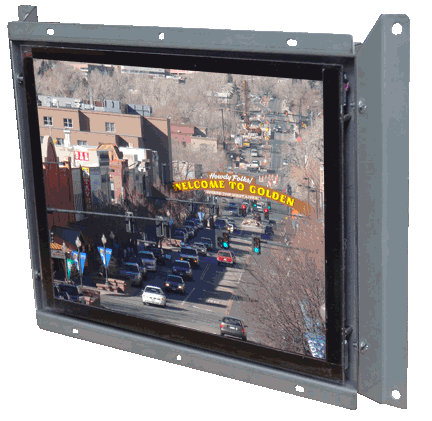

Open Frame Industrial LCD Display for 12" CRT Replacement Model with VGA Shown

Open Frame Industrial LCD Display FEATURES

  • Sturdy metal chassis with mounting holes equivalent to 12" color CRT mounting hole pattern
  • User OSD Controls: Brightness, contrast, auto set up, etc
  • Standard Input signals: VGA (640x480) or SVGA (800x600)
  • Tempurature - Operating from 0 - +55 degrees C
                                Storager from -20 to +65 degrees C
  • Input Signal Connector - 15 pin mini D-sub
  • AC Power Range - 90 VAC to 264 VAC (47 Hz to 63 Hz)
  • Standard model has anti-reflective polycarbonate protective
  • Optional signal include CGA, EGA, and several Japanese controller manufacturer signal formats
  • Safety agency compliance: UL, and CB

Open Frame Industrial LCD Display
ELECTRICAL AND DISPLAY SPECIFICATIONS
Active Matrix

10.4" TFT color LCD (264.1 mm diagonal)
Viewing Size (mm) 8.31" x 6.29" (211.2 x 158.4 mm)
Viewing Angle Horizontal - right & left 60 degrees
Vertical - upper 35 degrees & lower 65 degrees
Max Resolution 800 x 600 pixels
Max Colors 262K colors (RGB 6-bit driver)
Dot Pitch 0.264(H) x 0.264(W) mm
Response Time

Rise Time: 10 millisec
Fall Time: 25 millisec

Brightness Full white: 230 nits
Contrast Ratio 500:1
Horizontal Frequency 31.5 to 54 kHz (Standard)     15 - 54 KHz (Optional)
Vertical Frequency 56 to 85 Hz (Standard)    50 - 85 Hz (Optional)
Signal Inputs

—VGA/SVGA Models

31.4 kHz to 48 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector
Temperature Operating from 0 to +50 degrees C
Storage from -20 to +60 degrees C
DC Power Input Standard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts
AC Power Input Standard 100-240 VAC auto ranging @ 47 to 63 Hz
through standard IEC-320 connector or 3-wire AC power cord
Open Frame Industrial LCD Display
MECHANICAL DETAILS AND DIMENSIONS

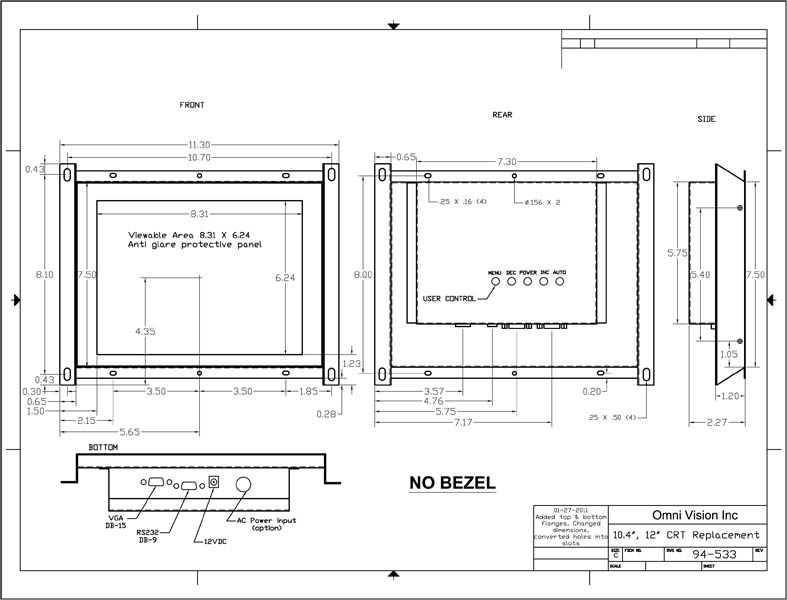

Drawing 94-533, Open Frame Industrial LCD Display
model FP10B4G0-E7
Industrial TFT Color LCD Display Monitors 10.4" Replacement for 12" CRT Open Frame Model drawing
PRINTING
 The following PDF files may be used for printing A-size drawing
pdf image
Open frame
Top & bottom flanges
Specifications Drawings
VGA/SVGA Models
DC version Open Frame Industrial LCD Display
FP10B4G0-E7		 Open Frame Industrial LCD Display
Drawing 94-533
AC version Open Frame Industrial LCD Display
FP10B4G0-E7		 Open Frame Industrial LCD Display
Drawing 94-533
