OmniVisionUSA.com - Industrial Monitors - Rack Mount - 17.1 Inch Monitor

Industrial LCD Display Monitors

Industrial LCD Display Rack Mount, 17.1" LCD in 19"

Made in the USA
Version Type Model # Power Input Type

VGA/SVGA/XGA/SXGA

DC version Not Availible
AC version FP17D4G0-xx… Series Input: 110/220 VAC

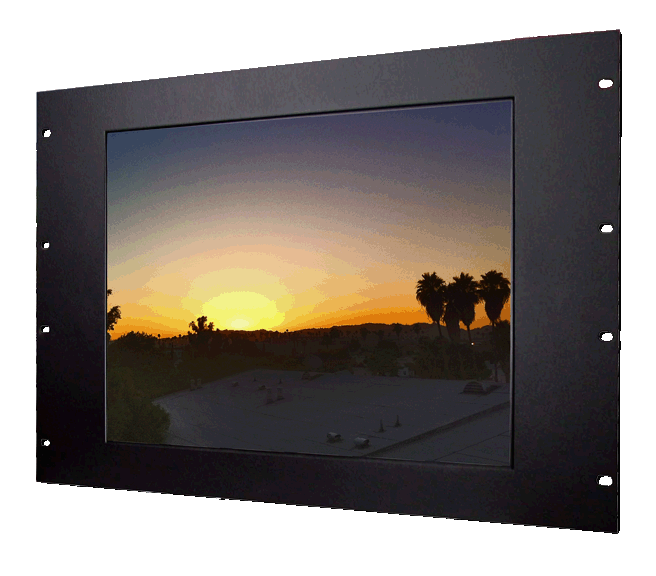

Rack Mount Industrial TFT LCD 17 .1 inch Monitor in 19 inch Rack Mount

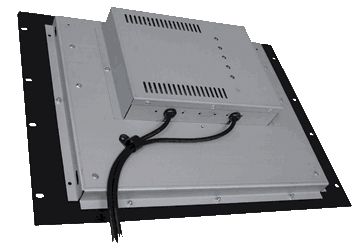

Rack Mount Industrial TFT LCD 17 .1 inch Monitor in 19 inch Rack Mount rear view

Industrial LCD Display Rack Mount Model Shown with VGA Input

Industrial LCD Display Rack Mount FEATURES

  • Easy to mount open frame, metal chassis (top & bottom flanges or side flanges)
  • Optional metal bezel ready for panel mounting with option for NEMA rated applications
  • Optional Rack Mount: Standard 19" Panel
  • User controls: Brightness, contrast, auto set up, etc
  • User service controls accessed in rear standard
  • Different models for different input signals: VGA/SVGA/XGA/SXGA
  • Input power flexibility: Standard +12 vdc at 2.0 Amps, other DC voltages or auto ranging AC power input from 100-240 VAC @ 47 to 63 Hz
  • RoHS compliant
  • Safety agency compliance: - UL, cUL, and others
  • Standard model has anti-reflective polycarbonate protective
  • Options: Resistive touch screens with RS232 or USB interface for Windows and other operating systems

Industrial LCD Display Rack Mount
ELECTRICAL AND DISPLAY SPECIFICATIONS
Active Matrix

17" TFT color LCD (432-mm diagonal)
Usable Viewing Area (Size) 11.97" X 8.98.6" (304.1 x 228.1 mm)
Viewing Angle Horizontal - right & left 70 degrees
Vertical - upper 65 degrees & lower 55 degrees
Max Resolution 1280 X 1024 pixels
Max Colors 16.2 M colors
Dot Pitch 0.264(H) x 0.0.264(W) mm
Response Time

Total Response Time: 8 millisec (typical)
Brightness Full white: 250 nits
Contrast Ratio 450:1
Horizontal Frequency 31.5 kHz to 80 kHz
Vertical Frequency 56 to 75 Hz
Signal Inputs
VGA/SVGA/XGA/SXGA Model 31.4 kHz to 80 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector
Temperature Operating from 0 to +40 degrees C
Storage from -20 to +60 degrees C
DC Power Input Standard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts
AC Power Input Standard 100-240 VAC auto ranging @ 47 to 63 Hz
through standard IEC-320 connector or 3-wire AC power cord
Industrial LCD Display Rack Mount
MECHANICAL DETAILS AND DIMENSIONS

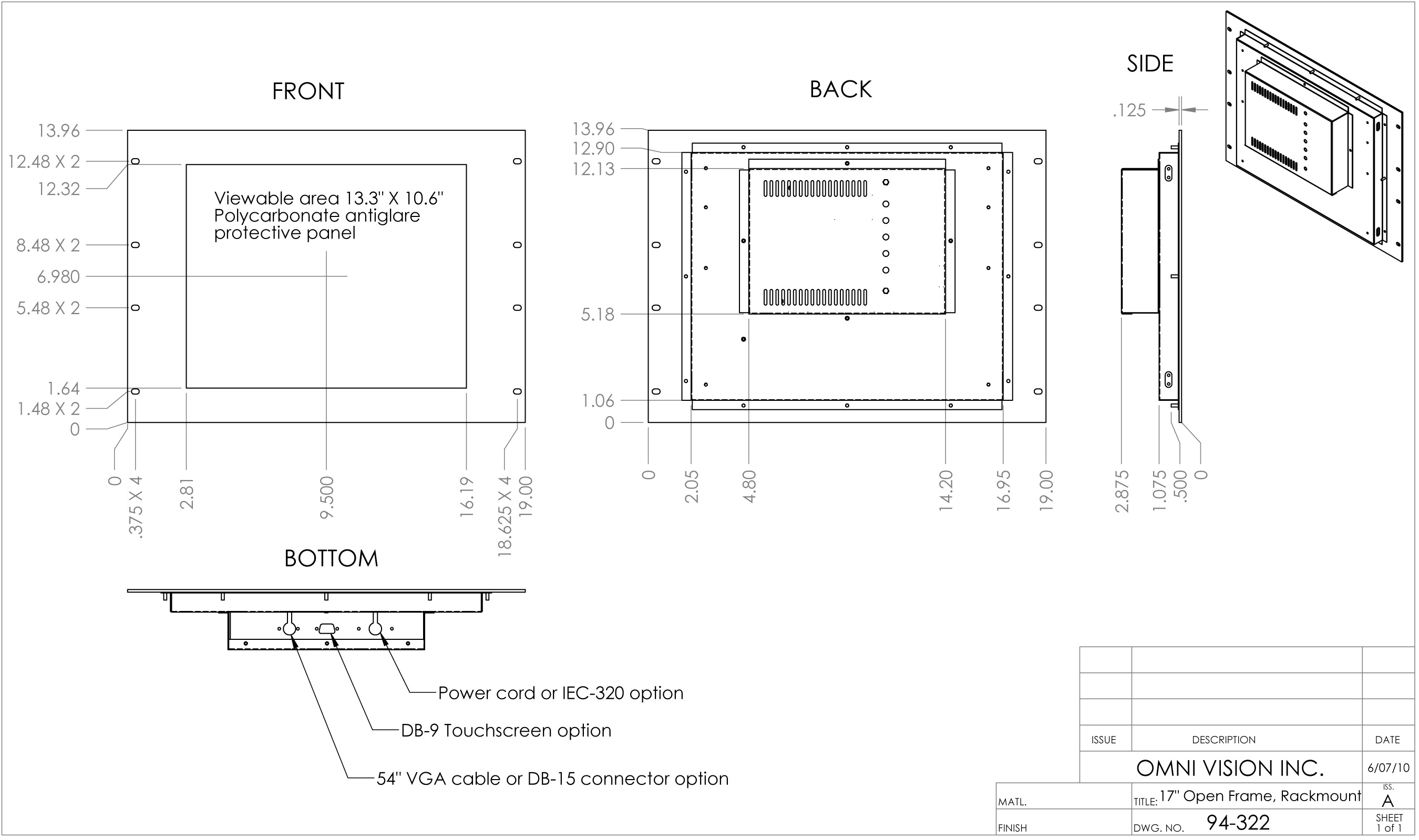

Drawing 94-322 for Industrial LCD Display Rack Mount
Top & bottom flanges FP17DxG0-R1
Rack Mount Industrial TFT LCD 17 .1 inch Monitor in 19 inch Rack Mount drawing
PRINTING
The following PDF files may be used for printing A-size drawing
pdf image
Rack Mount
19" Standard Panel
 Specifications Drawings
VGA/SVGA/XGA/SXGA model
DC version Industrial LCD Display Rack Mount
FP17D1G0-R1		 Industrial LCD Display Rack Mount
Drawing 94-322
AC version Industrial LCD Display Rack Mount
FP17D4G0-R1		 Industrial LCD Display Rack Mount
Drawing 94-322
