OmniVisionUSA.com - Industrial Monitors - Rack Mount - 15.1 Inch Monitor

Industrial LCD Display Monitors

Industrial LCD Display Rack Mount, 15.1" LCD in 19"

Made in the USA
Version Type Model # Power Input Type

VGA/SVGA/XGA & NTSC/PAL

DC version DM15C1G0-Rx… Series Input: +12 vdc
AC version DM15C4G0-Rx… Series Input: 110/220 VAC
Monitor- Industrial 15.1 inch LCD in 19 inch Rack Mount front Monitor- Industrial 15.1 inch LCD in 19 inch Rack Mount rear view

Industrial LCD Display Rack Mount Model Shown with Dual Mode Input

Industrial LCD Display Rack Mount FEATURES

  • New LCD back light
  • Easy to mount open frame, metal chassis (top & bottom flanges or side flanges)
  • Optional metal bezel ready for panel mounting with option for NEMA rated applications
  • Optional Rack Mount: Standard 19" Panel
  • User controls: Brightness, contrast, auto set up, etc
  • User service controls accessed in rear standard
  • Different models for different input signals: VGA/SVGA/XGA and NTSC or PAL
  • Input power flexibility: Standard +12 vdc at 2.0 Amps, other DC voltages or auto ranging AC power input from 100-240 VAC @ 47 to 63 Hz
  • RoHS compliant
  • Safety agency compliance: UL, cUL and others.
  • Standard model has anti-reflective polycarbonate protective
  • Options: Resistive touch screens with RS232 or USB interface for Windows and other operating systems

Industrial LCD Display Rack Mount
ELECTRICAL AND DISPLAY SPECIFICATIONS
Active Matrix

15" TFT color LCD (381 mm diagonal)
Usable Viewing Area (Size) 11.97" X 8.98" (304.1 x 228.1 mm)
Viewing Angle Horizontal - right & left 80 degrees
Vertical - upper 60 degrees & lower 80 degrees
Max Resolution 1024 X 768 pixels
Max Colors 16.2M/262K colors (262K - RGB 6-bit driver)
Dot Pitch 0.297(H) x 0.0.297(W) mm
Response Time

Rise Time: 5.7 millisec (typical)

Fall Time: 2.3 millisec (typical)
Brightness Full white: 400 nits
Contrast Ratio 700:1
Horizontal Frequency 31.5 kHz to 54 kHz
Vertical Frequency 56 to 85 Hz
Signal Inputs

—VGA/SVGA/XGA Model

 31.4 kHz to 56 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector

—NTSC/PAL Model

 Standard RCA connector or optional BNC adaptor
Temperature Operating from -30 to +85 degrees C
Storage from -30 to +85 degrees C
DC Power Input Standard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts
AC Power Input Standard 100-240 VAC auto ranging @ 47 to 63 Hz
through standard IEC-320 connector or 3-wire AC power cord
Industrial LCD Display Rack Mount
MECHANICAL DETAILS AND DIMENSIONS

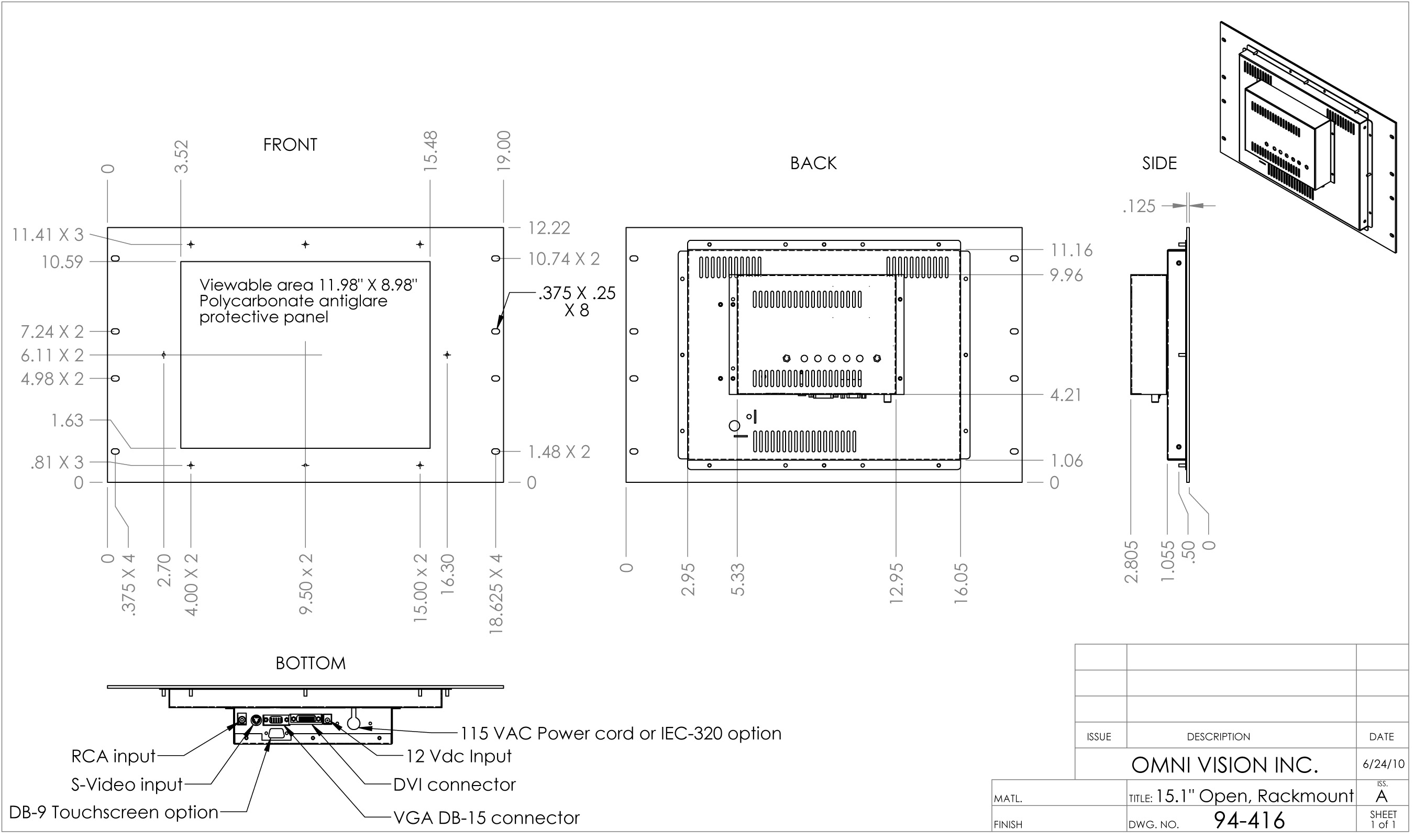

Drawing 94-416 for Industrial LCD Display Rack Mount
Model DM15CxG0-R1
Industrial TFT LCD 15.1 inch Monitor in 19 inch Rack Mount drawing
PRINTING
 The following PDF files may be used for printing A-size drawing
pdf image
RackMount 15" Panel
Specifications Drawings
VGA/SVGA/XGA
& NTSC/PAL Model
DC version Industrial LCD Display Rackmount
DM15C1G0-R1		 Industrial LCD Display Rackmount
Drawing 94-416
AC version Industrial LCD Display Rackmount
DM15C4G0-R1		 Industrial LCD Display Rackmount
Drawing 94-416
