Industrial LCD Display MonitorFlat Rear Panel Mount Display Monitor, 6.4"
|
|||||||||
  |
|||||||||
Flat Panel Mount Display Monitor FEATURES• Easy mounting of rear mount bezel unit• Service controls available at rear of chassis • User Controls: Brightness, Contrast, Phase and Position (Horizontal and Vertical) • Different Models for various input signals - VGA or NTSC/PAL • Power input flexibility: Standard - Regulated +12 vdc at 2 amps Optional AC Voltage power supply available (Range - 90 VAC to 264 VAC (47 Hz to 63 Hz) • Options: Touch Screens - Resistive, Surface Acoustical Wave, Capacitive, or Infra Red with RS-232 interface and DOS or Window NT/95/98 drivers |
|||||||||
Flat Panel Mount Display Monitor |
|||||||||
| Active Matrix |
6.4" TFT color LCD (160 mm diagonal) |
| Viewing Size (mm) | 5.1" X 3.8" (130 x 97 mm) |
| Viewing Angle |
Horizontal
+/- 60 degrees |
| Max Resolution | 640x480 pixels |
| Max Colors | 262144 colors |
| Pixel Pitch | 0.204(H) x 0.204(W) mm |
| Response Time |
Rise
Time 20 ms |
| Brightness | Full white >240 cd/m sq'd (NITS) |
| Contrast Ratio | Typically 100:1 |
| LCD MTBF | 25,000 hours |
| Backlight MTBF | 25,000 hours |
| Signal Inputs | |
|
—VGA Model |
Standard computer graphics card output signal Input connector standard 15 pin mini "D" sub |
|
—NTSC / PAL Model |
Standard
video camera output or equivalent Input connector - BNC or RCA connector |
| Temperature | Operating
from 0 to +40 degrees C Storage from -25 to +60 degrees C |
| Power
Input (standard) AC power (option) |
Regulated +12 vdc at 2 amps Range 90-264 VAC (47-63Hz) |
Flat Panel Mount Display Monitor |
||||||||

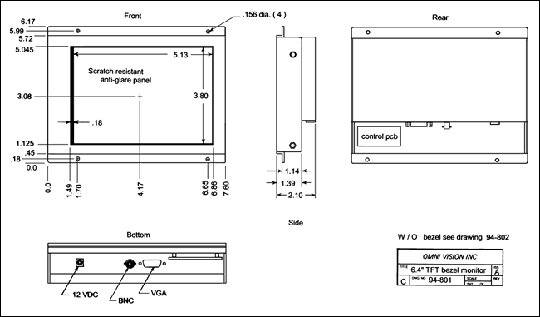

| Drawing 94-801 for Flat Rear Panel Mount Display Monitor models FP06AXB0-A1 series |
||||||||
 |
||||||||
| PRINTING The following PDF file may be used for printing A-size drawing |
||||||||
 |
Flat Rear Panel Mount Display Monitor Drawing 94-801 | |||||||
|
