OmniVisionUSA.com - Industrial Monitors - Panel Mount - 17.1 Inch Monitor

Industrial LCD Display Monitors

Flat Panel Mount Display Monitor, 17.1"

Made in the USA
Version Type Model # Power Input Type

VGA/SVGA/XGA/SXGA

DC version Not Available
AC version FP17D4G0-xx… Series Input: 110/220 VAC

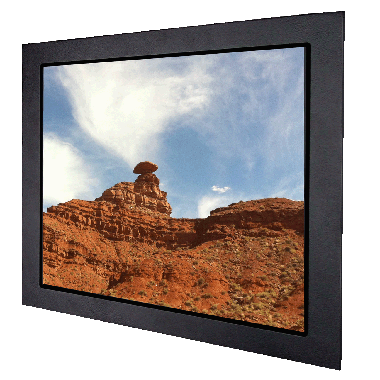

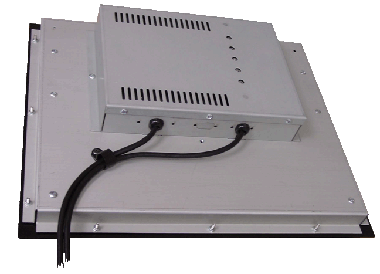

Industrial LCD Display Monitor 17.1" Open Frame Models front view  Industrial LCD Display Monitors 17.1" Open Frame Models rear view


Flat Panel Mount Display Monitor Model Shown with VGA Input

Flat Panel Mount Display Monitor FEATURES

  • Easy to mount open frame, metal chassis (top & bottom flanges or side flanges)
  • Optional metal bezel ready for panel mounting with option for NEMA rated applications
  • User controls: Brightness, contrast, auto set up, etc
  • User service controls accessed in rear standard
  • Different models for different input signals: VGA/SVGA/XGA/SXGA
  • Input power flexibility: Standard +12 vdc at 2.0 Amps, other DC voltages or auto ranging AC power input from 100-240 VAC @ 47 to 63 Hz
  • RoHS compliant
  • Safety agency compliance: - UL, cUL, and others
  • Standard model has anti-reflective polycarbonate protective
  • Options: Resistive touch screens with RS232 or USB interface for Windows and other operating systems

Flat Panel Mount Display Monitor
ELECTRICAL AND DISPLAY SPECIFICATIONS
Active Matrix

17" TFT color LCD (432-mm diagonal)
Usable Viewing Area (Size) 11.97" X 8.98.6" (304.1 x 228.1 mm)
Viewing Angle Horizontal - right & left 70 degrees
Vertical - upper 65 degrees & lower 55 degrees
Max Resolution 1280 X 1024 pixels
Max Colors 16.2 M colors
Dot Pitch 0.264(H) x 0.0.264(W) mm
Response Time

Total Response Time: 8 millisec (typical)
Brightness Full white: 250 nits
Contrast Ratio 450:1
Horizontal Frequency 31.5 kHz to 80 kHz
Vertical Frequency 56 to 75 Hz
Signal Inputs

VGA/SVGA/XGA/SXGA Model

 31.4 kHz to 80 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector
Temperature Operating from 0 to +40 degrees C
Storage from -20 to +60 degrees C
DC Power Input Not Available
AC Power Input Standard 100-240 VAC auto ranging @ 47 to 63 Hz
through standard IEC-320 connector or 3-wire AC power cord
Flat Panel Mount Display Monitor
MECHANICAL DETAILS AND DIMENSIONS

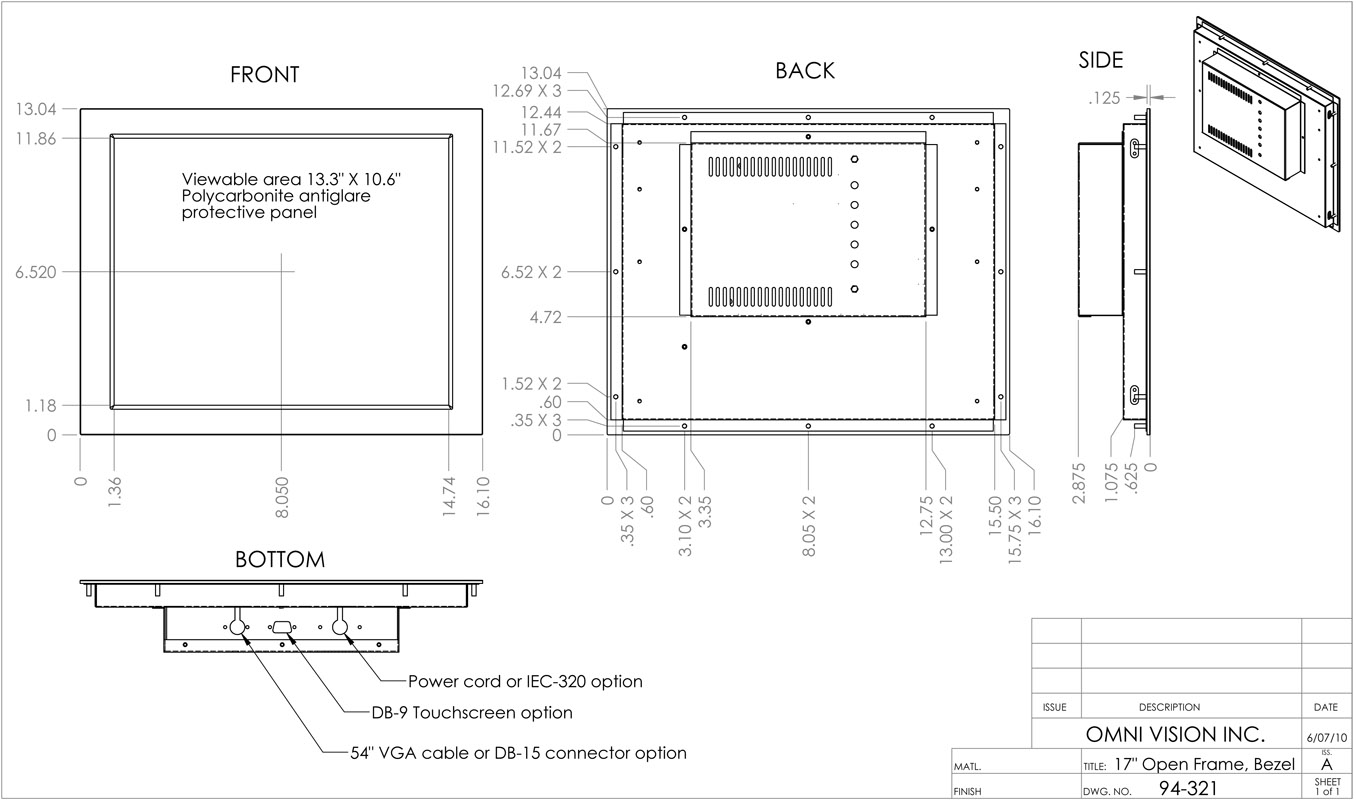

Drawing 94-321 for Flat Panel Mount Display Monitor
Model FP17DxG0-B1
Industrial LCD Display Monitors 17.1" Open Frame Model Drawing
PRINTING
The following PDF files may be used for printing A-size drawing
pdf image
17.1 " Panel Mount
Specifications Drawings
VGA/SVGA/XGA/SXGA model
DC version Not Available Not Available
AC version Flat Panel Mount Display Monitor
FP17D4G0-B1		 Flat Panel Mount Display Monitor
Drawing 94-321
