Industrial LCD Display MonitorsOpen Frame Industrial Monitor, 10.4"Made in the USA
|
||
| Version Type | Model # | Power Input Type |
| VGA/SVGA (analog) | ||
| DC version | BZ10B1G0-xx… Series | Input: +12 vdc |
| AC version | BZ10B4G0-xx… Series | Input: 110/220 VAC |
| Dual VGA/SVGA and NTSC/PAL | ||
| DC version | DM10B1G0-xx… Series | Input: +12 vdc |
| AC version | DM10B4G0-xx… Series | Input: 110/220 VAC |

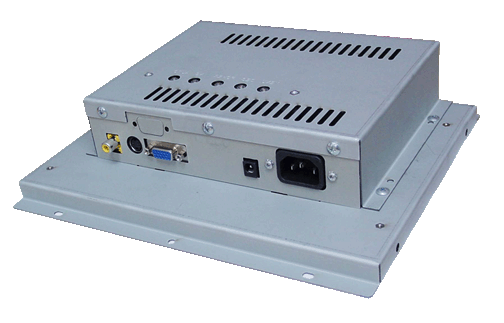

Industrial Flat Panel Display Monitor Open Frame Model with VGA Shown |
||
Industrial Flat Panel Monitor FEATURES
|
||
Industrial Flat Panel Monitor |
||
| Active Matrix |
10.4" TFT color LCD (264.1 mm diagonal) |
|
| Viewing Size (mm) | 8.31" x 6.29" (211.2 x 158.4 mm) | |
| Viewing Angle |
Horizontal - right & left 60 degrees Vertical - upper 35 degrees & lower 65 degrees |
|
| Max Resolution | 800 x 600 pixels | |
| Max Colors | 262K colors (RGB 6-bit driver) | |
| Dot Pitch | 0.264(H) x 0.264(W) mm | |
| Response Time |
Rise
Time: 10 millisec |
|
| Brightness | Full white: 230 nits | |
| Contrast Ratio | 500:1 | |
| Horizontal Frequency | 31.5 to 54 kHz | |
| Vertical Frequency | 56 to 85 Hz | |
| Signal Inputs | ||
|
—VGA/SVGA Models |
31.4 kHz to 48 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector | |
| NTSC/PAL Models | Standard RCA connector or optional BNC adapter | |
| Temperature | Operating
from 0 to +50 degrees C Storage from -20 to +60 degrees C |
|
| DC Power Input | Standard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts | |
| AC Power Input | Standard 100-240 VAC auto ranging @ 47 to 63 Hz through standard IEC-320 connector or 3-wire AC power cord |
|
