Open Frame Industrial Monitor, 8.4"

Made in the USA
Version Type Model # Power Input Type

VGA/SVGA

VGA DC Version
BZ08B1G0-xx… Series Input: +12 vdc
VGA AC Version
BZ08B4G0-xx… Series Input: 110/220 VAC

Dual VGA/SVGA and NTSC/PAL

DC version DM08B1G0-xx… Series Input: +12 vdc
AC version DM08B4G0-xx… Series Input: 110/220 VAC

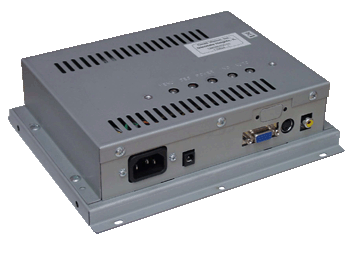

Open Frame Industrial LCD Display Monitors 8.4" front viewOpen Frame Industrial TFT LCD Display Monitors 8.4" Open Frame Model rear view
Open frame Industrial Flat Panel Monitor Model with VGA Shown

Industrial Flat Panel Monitor FEATURES

  • Easy to mount open frame, metal chassis (top & bottom flanges or side flanges)
  • Optional metal bezel ready for panel mounting with option for NEMA rated applications
  • User controls: Brightness, contrast, auto set up, etc
  • User service controls accessed in rear standard
  • Different models for different input signals: VGA/SVGA and NTSC or PAL
  • Input power flexibility: Standard +12 vdc at 2.0 Amps, other DC voltages or auto ranging AC power input from 100-240 VAC @ 47 to 63 Hz
  • RoHS compliant
  • Safety agency compliance: UL, cUL, and others
  • Standard model has anti-reflective polycarbonate protective
  • Options: Resistive touch screens with RS232 or USB interface for Windows and other operating systems

Industrial Flat Panel Monitor
ELECTRICAL AND DISPLAY SPECIFICATIONS
Active Matrix

8.4" TFT color LCD (213.4 mm diagonal)
Viewing Size (mm) 6.71" x 5.03" (170.4 x 127.8 mm)
Viewing Angle Horizontal - right & left 65 degrees
Vertical - upper 65 degrees & lower 45 degrees
Max Resolution 800 x 600 pixels
Max Colors 262K colors (RGB 6-bit driver)
Dot Pitch 0.213(H) x 0.213(W) mm
Response Time

Rise Time: 10 millisec
Fall Time: 25 millisec

Brightness Full white: 220 nits
Contrast Ratio 500:1
Horizontal Frequency 31.5 to 54 kHz
Vertical Frequency 56 to 85 Hz
Signal Inputs

VGA/SVGA Models

31.4 kHz to 48 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector

DVI models

 Standard DVI-D connector
Temperature Operating from 0 to +50 degrees C
Storage from -20 to +60 degrees C
DC Power Input Standard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts
AC Power Input Standard 100-240 VAC auto ranging @ 47 to 63 Hz through standard IEC-320 connector or 3-wire AC power cord
Industrial Flat Panel Monitor
MECHANICAL DETAILS AND DIMENSIONS

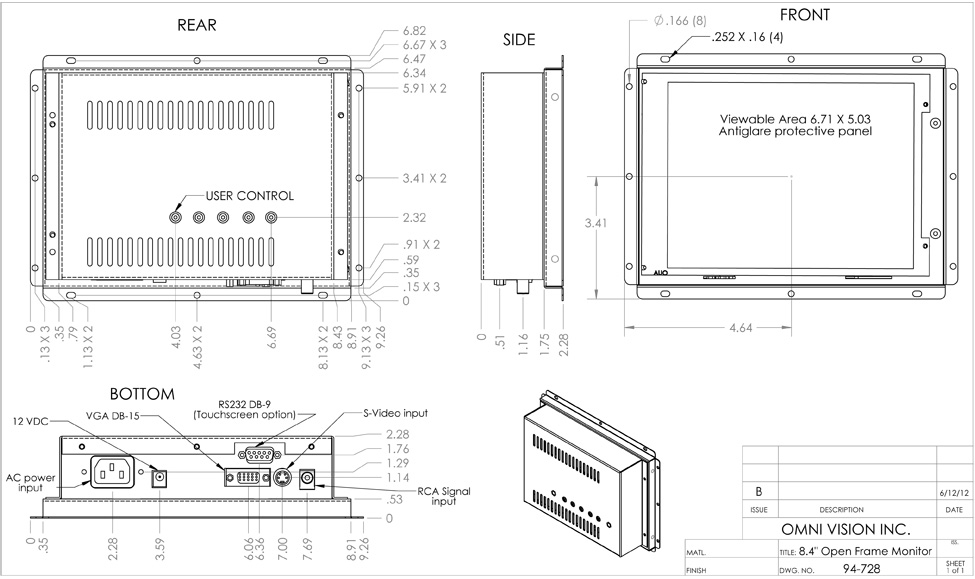

Drawing 94-728 for Open Frame, Industrial Flat Panel Monitor, ALL SIDES with Flanges Mod. #DM08BxG0-02
Industrial TFT Color LCD Display Monitors 8.4" Open Frame Models top and bottom flanges drawing
PRINTING
 The following PDF files may be used for printing A-size drawing
Open frame
Top & bottom flanges
 Specifications Drawings
VGA/SVGA
DC version Industrial Flat Panel Monitor
BZ08B1G0-02		 Industrial Flat Panel Monitor
Drawing 94-728
AC version Industrial Flat Panel Monitor
BZ08B4G0-02		 Industrial Flat Panel Monitor
Drawing 94-728
Dual Mode VGA/SVGA
& NTSC/PAL
DC version Industrial Flat Panel Monitor
DM08B1G0-02		 Industrial Flat Panel Monitor
Drawing 94-728
AC version Industrial Flat Panel Monitor
DM08B4G0-02		 Industrial Flat Panel Monitor
Drawing 94-728
Open frame
Side Flanges

VGA/SVGA
DC version Industrial Flat Panel Monitor
BZ08B1G0-03		 Industrial Flat Panel Monitor
Drawing 94-727
AC version Industrial Flat Panel Monitor
BZ08B4G0-03		 Industrial Flat Panel Monitor
Drawing 94-727
Dual Mode VGA/SVGA
& NTSC/PAL
DC version Industrial Flat Panel Monitor
DM08B1G0-03		 Industrial Flat Panel Monitor
Drawing 94-727
AC version Industrial Flat Panel Monitor
DM08B4G0-03		 Industrial Flat Panel Monitor
Drawing 94-727
