Open Frame Industrial Monitor, 6.5"

Made in the USA

Version Type Model # Power Input Type

Dual VGA/SVGA and NTSC/PAL

DC version DM06A1G0-xx… Series Input: +12 vdc
AC version DM06A4G0-xx… Series Input: 110/220 VAC
Open Frame Industrial Panel Monitors, 6.5 inchOpen Frame Industrial Panel Monitors, 6.5 inch

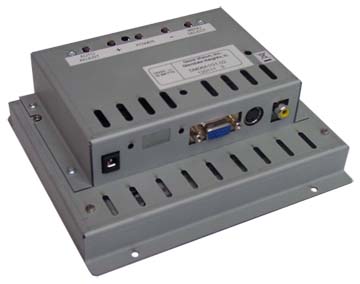

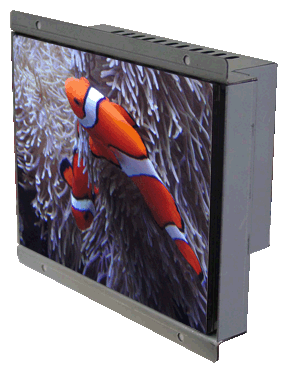

Industrial Flat Panel Display Monitor Model with VGA Shown

Industrial Flat Panel Monitor FEATURES

  • Easy to mount open frame, metal chassis (top & bottom flanges or side flanges)
  • Optional metal bezel ready for panel mounting with option for NEMA rated applications
  • User controls: Brightness, contrast, auto set up, etc
  • User service controls accessed in rear standard
  • Different models for different input signals: VGA/SVGA and NTSC or PAL
  • Input power flexibility: Standard +12 vdc at 2.0 Amps, other DC voltages or auto ranging AC power input from 100-240 VAC @ 47 to 63 Hz
  • RoHS compliant
  • Safety agency compliance: UL, cUL, and others
  • Standard model has anti-reflective polycarbonate protective
  • Options: Resistive touch screens with RS232 or USB interface for Windows and other operating systems

Industrial Flat Panel Monitor
ELECTRICAL AND DISPLAY SPECIFICATIONS
Active Matrix

6.5" TFT color LCD (165.1 mm diagonal)
Viewing Size (mm) 5.22" x 3.91" (132.5 x 99.4 mm)
Viewing Angle Horizontal - right & left 80 degrees
Vertical - upper & lower 70 degrees
Max Resolution 600 x 480 pixels
Max Colors 16.2 M / 262K colors
Dot Pitch 0.207(H) x 0.207(W) mm
Response Time

Rise Time: 15 millisec
Fall Time: 10 millisec

Brightness Full white: 800 nits
Contrast Ratio 600:1
Horizontal Frequency VGA mode 31.5 to 38 kHz / NTSC mode 15.75 kHz
Vertical Frequency 60 to 75 Hz
Signal Inputs

VGA/SVGA Models

31.4 kHz to 38 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector

NTSC/PAL Models

 Standard RCA connector or optional BNC adaptor
DC Power Input Standard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts
AC Power Input Standard 100-240 VAC auto ranging @ 47 to 63 Hz through standard IEC-320 connector or 3-wire AC power cord
Temperature Operating from -30 to +80 degrees C
Storage from -30 to +80 degrees C
Industrial Flat Panel Monitor
MECHANICAL DETAILS AND DIMENSIONS

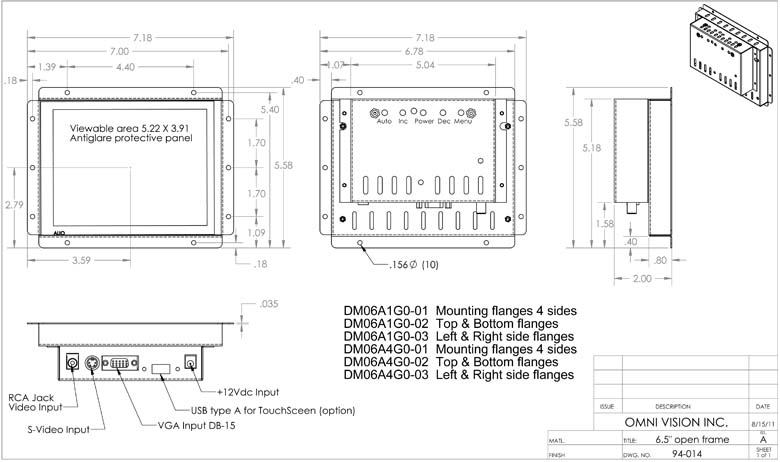

Drawing 94-014 for Open Frame Industrial Flat Panel Monitor
Flanges Model #DM06A1G0-01
Open Frame Industrial Panel Monitors, 6.5 inch top and bottom flanges drawing
PRINTING
 The following PDF files may be used for printing A-size drawing
Open frame
Flanges Model
 Specifications Drawings
Dual Mode VGA/SVGA
& NTSC/PAL
DC version Industrial Flat Panel Monitor
DM06A1G0-01		 Industrial Flat Panel Monitor
Drawing 94-014
AC version Industrial Flat Panel Monitor
DM06A4G0-01		 Industrial Flat Panel Monitor
Drawing 94-014
