Open Frame Industrial Monitor, 6.4"

Made in The USA

VGA Model #: FP06A1B0. . . series         Input: +12 VDC
VGA Model #: FP06A4B0. . . series         Input: 110/220 VAC
NTSC Model #: FP06G1B0. . . series      Input: +12 VDC
NTSC Model #: FP06G4B0. . . series      Input: 110/220 VAC

Open Frame Industrial Panel Monitors, 6.5 inch front view

Open Frame Industrial Panel Monitors, 6.5 inch rear view

Industrial Flat Panel Monitor FEATURES

• Easy mounting of aluminum chassis
• Service controls available at rear of chassis
• User Controls: Brightness, Contrast, Phase
—and Position (Horizontal and Vertical)
• Different Models for various input signals - VGA or NTSC/PAL
• Power input flexibility: Standard - Regulated +12 vdc at 2 amps Optional AC
—Voltage power supply available (Range - 90 VAC to 264 VAC (47 Hz to 63 Hz)
• Options: Touch Screens - Resistive, Surface Acoustical Wave, Capacitive, or
—Infra Red with RS-232 interface and DOS or Window NT/95/98 drivers

Industrial Flat Panel Monitor SPECIFICATIONS

Active Matrix	6.4" TFT color LCD (160 mm diagonal)
Viewing Size (mm)	5.1" X 3.8" (130 x 97 mm)
Viewing Angle	Horizontal +/- 60 degrees Vertical +35 & -55 degrees
Max Resolution	640x480 pixels
Max Colors	262144 colors
Pixel Pitch	0.204(H) x 0.204(W) mm
Response Time	Rise Time 20 ms Fall Time 40 ms
Brightness	Full white >240 cd/m sq'd (NITS)
Contrast Ratio	Typically 100:1
LCD MTBF	25,000 hours
Backlight MTBF	25,000 hours
Signal Inputs
—VGA Model	Standard computer graphics card output signal Input connector standard 15 pin mini "D" sub
—NTSC / PAL Model	Standard video camera output or equivalent Input connector - BNC or RCA connector
Temperature	Operating from 0 to +40 degrees C Storage from -25 to +60 degrees C
Power Input (standard) AC Power (option)	Regulated +12 vdc at 2 amps Range 90-264 VAC (47-63Hz)

Industrial Flat Panel Monitor DIMENSIONS

Drawing 94-802 for Chassis models Industrial Flat Panel Monitor
FP06AXB0 series

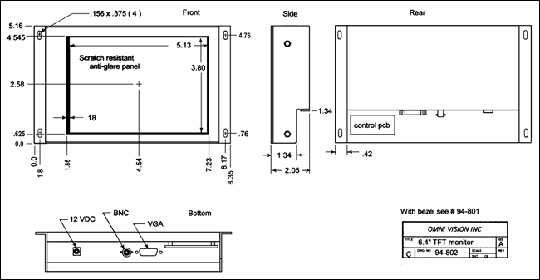

Industrial TFT Color LCD Display Monitor 6.4" Open Frame drawing

PRINTING The following PDF file may be used for printing A-size drawing

Industrial Open Frame Monitor Drawing 94-802
