OmniVisionUSA.com - Industrial Monitors - Open Frame- 12.1 Inch Monitor

Industrial LCD Display Monitors

Open Frame Industrial Monitor, 12.1"

Made in the USA

Version Type Model # Power Input Type

VGA/SVGA (analog)

DC version BZ12B1G0-xx… Series Input: +12 vdc
AC version BZ12B4G0-xx… Series Input: 110/220 VAC

Dual VGA/SVGA and NTSC/PAL

DC version DM12B1G0-xx… Series Input: +12 vdc
AC version DM12B4G0-xx… Series Input: 110/220 VAC
Open Frame Industrial LCD Display Monitors 12.1" Chassis Version ModelsOpen Frame Industrial LCD Display Monitors 12.1"

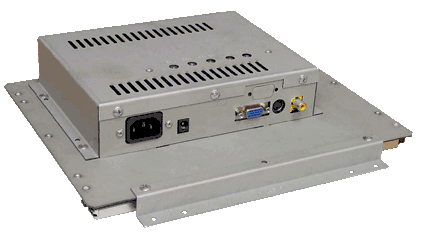

Industrial Flat Panel Display Monitor Model with VGA Shown

Industrial Flat Panel Monitor Display FEATURES

  • Easy to mount open frame, metal chassis (top & bottom flanges or side flanges)
  • Optional metal bezel ready for panel mounting with option for NEMA rated applications
  • Optional Rack Mount: Standard 19" Panel
  • User controls: Brightness, contrast, auto set up, etc
  • User service controls accessed in rear standard
  • Different models for different input signals: VGA/SVGA or Dual VGA/SVGA and NTSC/PAL
  • Input power flexibility: Standard +12 vdc at 2.0 Amps, other DC voltages or auto ranging AC power input from 100-240 VAC @ 47 to 63 Hz
  • RoHS compliant
  • Safety agency compliance: UL, cUL, and others
  • Standard model has anti-reflective polycarbonate protective
  • Options: Resistive touch screens with RS232 or USB interface for Windows and other operating systems

Industrial Flat Panel Monitor
ELECTRICAL AND DISPLAY SPECIFICATIONS
Active Matrix

12.1" TFT color LCD (307.3 mm diagonal)
Viewing Size (mm) 9.68" x 7.26" (246.0 x 184.5 mm)
Viewing Angle Horizontal - right & left 70 degrees
Vertical - upper 50 degrees & lower 60 degrees
Max Resolution 800 x 600 pixels
Max Colors 16.2M/262K colors (RGB 6-bit driver)
Dot Pitch 0.3075(H) x 0.3075(W) mm
Response Time

Rise Time: 10 millisec (typical)
Fall Time: 25 millisec (typical)
Brightness Full white: 400 nits
Contrast Ratio 600:1
Horizontal Frequency 31.5 to 54 kHz
Vertical Frequency 56 to 85 Hz
Signal Inputs

VGA/SVGA Model

 31.4 kHz to 48 kHz @ 60 Hz through standard analog 15-pin HD mini "D" sub connector

Dual VGA/SVGA
   and NTSC/PAL

Standard RCA connector or optional BNC adapter
Temperature Operating from -30 to +85 degrees C
Storage from -30 to +85 degrees C
DC Power Input Standard +12 vdc @ 2 Amps with option to request models with other DC voltage ranging from 9 volts to 48 volts
AC Power Input Standard 100-240 VAC auto ranging @ 47 to 63 Hz
through standard IEC-320 connector or 3-wire AC power cord
Industrial Flat Panel Monitor
MECHANICAL DETAILS AND DIMENSIONS
Drawing 94-514 for Industrial Flat Panel Monitor Open frame
Top & bottom flanges BZ12BxG0-02
12.1 inch open frame Industrial LCD side flange

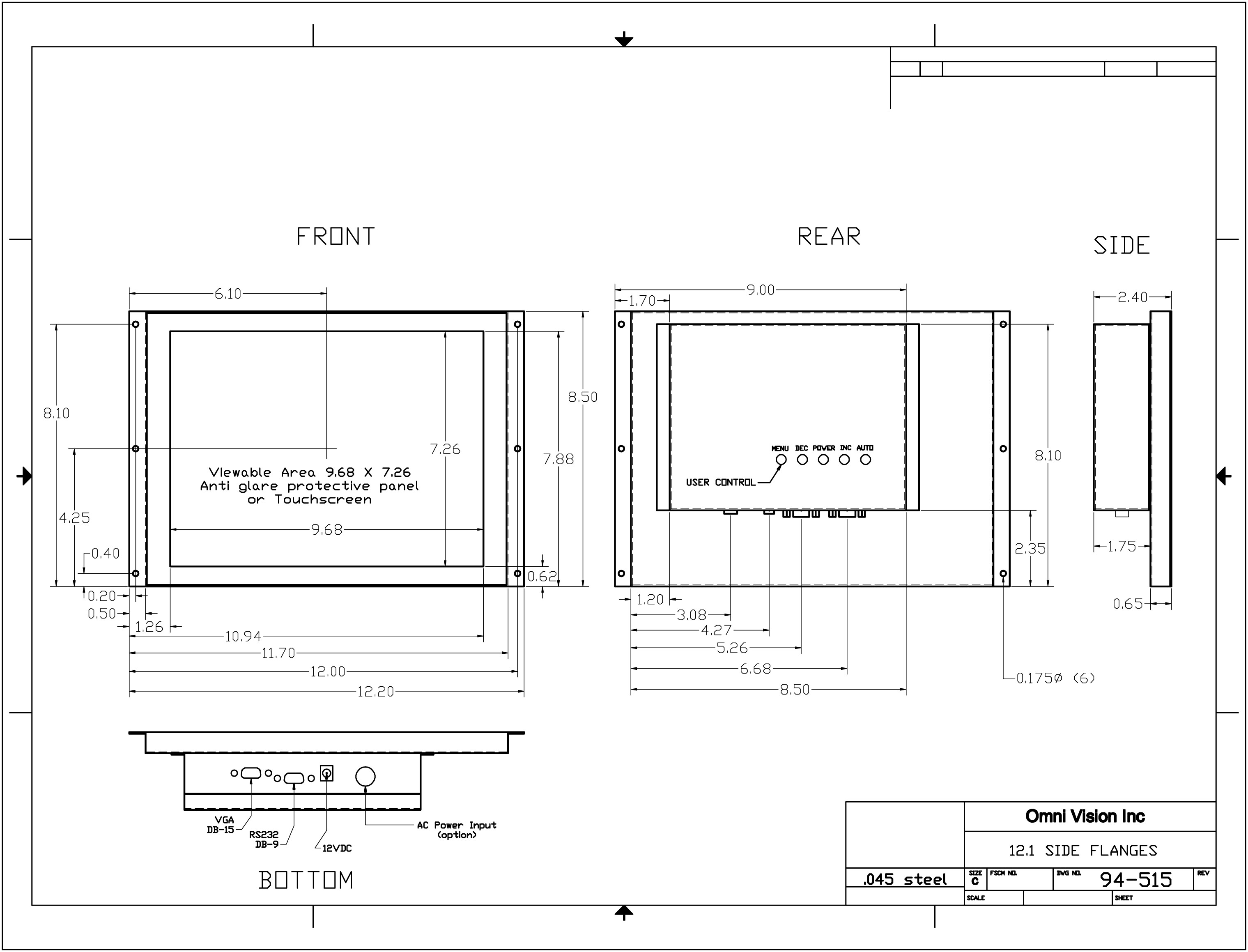

Drawing 94-515 for Industrial Flat Panel Monitor Open frame
Side flanges BZ12BxG0-03
Industrial TFT Color LCD Display Monitors 12.1" Open Frame Chassis Version Models Top & Bottom flanges drawing
PRINTING
The following PDF files may be used for printing A-size drawing
pdf image
Open frame
Top & bottom flanges
 Specifications Drawings
VGA/SVGA
& NTSC/PAL Models
DC version Industrial Flat Panel Monitor
BZ12B1G0-02		 Industrial Flat Panel Monitor
Drawing 94-514
AC version Industrial Flat Panel Monitor
BZ12B4G0-02		 Industrial Flat Panel Monitor
Drawing 94-514
Open frame
Side flanges

VGA/SVGA
& NTSC/PAL Models
DC version Industrial Flat Panel Monitor
BZ12B1G0-03		 Industrial Flat Panel Monitor
Drawing 94-515
AC version Industrial Flat Panel Monitor
BZ12B4G0-03		 Industrial Flat Panel Monitor
Drawing 94-515
