Desktop LCD Display Monitors

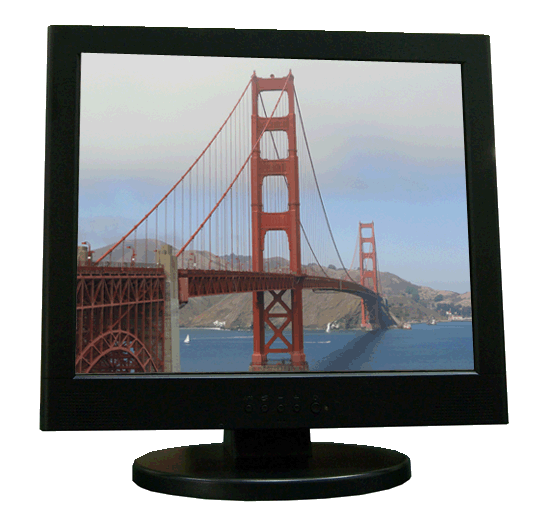

19 inch RS 343 A- Model VT19WV7X

This TFT active matrix LCD monitor requires video from any high-resolution composite video source.  Just apply power and connect the video signal for this Plug & Play monitor to display the video, text, and graphics generated by your source program/equipment.

RS343 A- Industrial LCD Desktop Monitor

19 " RS 343 A- Model VT19WV7X
Desktop LCD Display Monitor FEATURES

  • Black desktop plastic cabinet with pedestal base with tilt option
  • User controls: Brightness, contrast, auto set up, etc
  • On Screen Display (OSD) for user control
  • Signal Input type: Analog PC timing as VGA through input connector 15 pin HD D-sub
  • Certifications: FCC-B, CE, UL …
  • Front controls: Power switch, Brightness, Menu, Select (Up/Down)
  • Options: Resistive touch screens with RS232 or USB interface for Windows and other operating systems

19 " RS 343 A- Model VT19WV7X
Desktop LCD Display Monitor
ELECTRICAL AND DISPLAY SPECIFICATIONS

Active Matrix

19" TFT color LCD (483 mm diagonal)

Usable Viewing Area (Size) 14.8" X 11.8" (376.3 x 301.1 mm)
Viewing Angle Horizontal - right & left 85 degrees
Vertical - upper & lower 80 degrees
Max Resolution 1280 X 1024 pixels
Max Colors 16.M colors
Dot Pitch 0.294(H) x 0.0.294(W) mm
PC Timing

H: 30-80 kHz

V: 50-75 kHz

Brightness Full white: 250 nits
Contrast Ratio 500:1
RS343 timing: Scan Frequencies H 20-30 kHz, V 30 Hz (frame) / 60 Hz (field)
Signal Inputs Standard RS343 A High Resolution TV System Signal through BNC
Operating Temperature – 0 to +45 degree C
Power Input +12 vdc, 45 W, power module included 100-240 VAC (auto-sensing)
RS343A Input Signal Definition
Lines/ FrameActive Lines Vertical Resolution H frequency kHz H period usec H active usec
675 624425 20.25 49.38 42.38
729 674 475 21.87 45.72 38.72
875 809 575 26.25 38.09 31.09
945 874 600 28.35 35.27 28.27
1023 946 650 30.69 32.58 25.58
PRINTING
The following PDF files may be used for printing A-size drawing
pdf imageDesktop LCD Display Monitor -19 " RS343 A- Model VT19WV7X - Specifications
